1
Engine displacement
1100
2
Year
2020
3
Trim
SCOUT BOBBER / BOBBER TWENTY
4
Parts Catalog
FRONT BRAKE ASM. (NON ABS)
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
CRANKCASE ASM.
FRONT BRAKE ASM. (NON ABS)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
WASHER 10 MM COPPER
1912829
£12,72 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
£11,27 Unit Price incl. VAT
3
HOSE-BRAKE FRT NONABS BOB
1913375
£131,24 Unit Price incl. VAT
3
HOSE-BRAKE FRT NONABS APE
1913356
£105,00 Unit Price incl. VAT
4
SCREW
7517704
£10,14 Unit Price incl. VAT
5
SCR-SH-M10X1.25X30 8.8 ZPC
7520057
£12,72 Unit Price incl. VAT
6
ASM-CAL FR 32/30 101 ADZBK [INCL. 7-12]
1913694-468
£427,02 Unit Price incl. VAT
7
K-BLEEDER SET;CAL;J
2206140
£85,31 Unit Price incl. VAT
8
K-BRACKET
2206143
£67,12 Unit Price incl. VAT
9
K-REBUILD FRCAL 32/30
2208280
£150,71 Unit Price incl. VAT
10
BRAKE PADS
2206139
£88,60 Unit Price incl. VAT
11
SPRING AND PINS KIT
2206141
£78,74 Unit Price incl. VAT
12
K-BOOT CAL J
2206142
£53,69 Unit Price incl. VAT
13
PANDUIT STRAP
7080138
£2,84 Unit Price incl. VAT
14
COVER-TYCO 2P
4018140
£14,88 Unit Price incl. VAT
15
ASM BLEEDER BANJO O-RING
1913696
£50,27 Unit Price incl. VAT

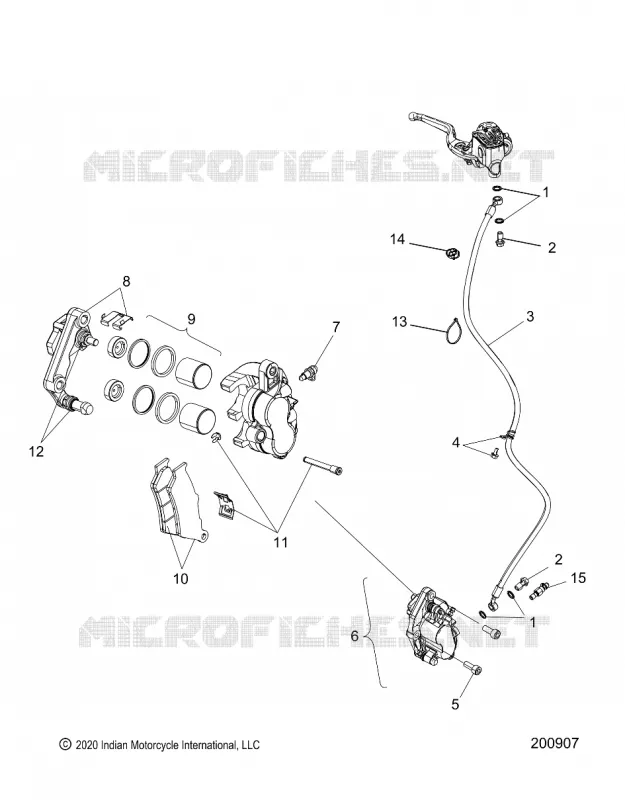

Find the detailed FRONT BRAKE ASM. (NON ABS) INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
