1
Engine displacement
1100
2
Year
2020
3
Trim
SCOUT BOBBER / BOBBER TWENTY
4
Parts Catalog
WHEEL, FRONT, WW
5
Parts Diagram
Parts Catalog
ENGINE, PISTON AND CRANKSHAFT
by
ELECTRICAL, BATTERY
WHEEL, FRONT, WW
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
1
AXLE; FRONT
5138767
£39,17 Unit Price incl. VAT
2
WHEEL BEARING SPACER REAR LEFT
5631479
£5,24 Unit Price incl. VAT
3
FRONT MT60RS TIRE; 130/90-16
5416925
£285,44 Unit Price incl. VAT
4
BALL BEARING; 20 MM X 52 MM X 15 MM
3514405
£24,48 Unit Price incl. VAT
5
ASM-WHL WIRE FRT 16X3.5 BLK [INCL. 4 8 12]
1522474-266
£716,74 Unit Price incl. VAT
6
STEEL WEIGHT; 7G; BLACK
1522980
1525326
£7,88 Unit Price incl. VAT
7
RIM STRAP; 16 IN
5813714
£28,72 Unit Price incl. VAT
8
WHEEL SPACER; 21 X 27 X 16
5337827
£24,48 Unit Price incl. VAT
9
ROTOR-BRK FLOAT FLAT BLK
1912961-266
£144,43 Unit Price incl. VAT
10
ABS TONE RING
5263961
£85,31 Unit Price incl. VAT
11
SCR-HXFL M8X1.25X25 GEOMET
7521014
£2,62 Unit Price incl. VAT
12
SEAL; 30 X 52 X 7
3610094
£39,17 Unit Price incl. VAT
13
TUBE-TIRE INNER
1823877
£156,98 Unit Price incl. VAT

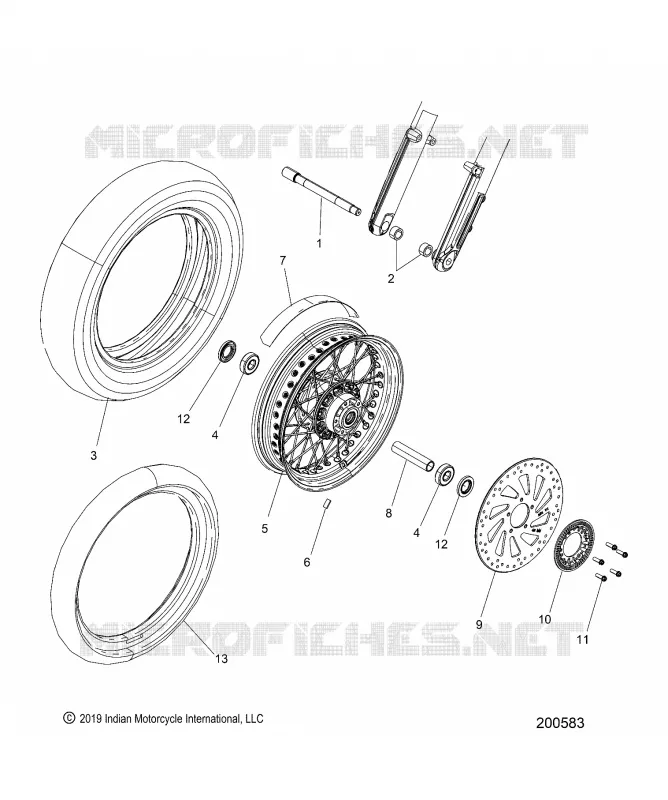

Find the detailed WHEEL, FRONT, WW INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
