1
Engine displacement
1100
2
Year
2020
3
Trim
SCOUT BOBBER / BOBBER TWENTY
4
Parts Catalog
REAR BRAKE ASM. (NON ABS)
5
Parts Diagram
Parts Catalog
BODYWORK - FRONT FENDER/REAR
by
ENGINE, PISTON AND CRANKSHAFT
REAR BRAKE ASM. (NON ABS)
1
1
2
3
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
WASHER 10 MM COPPER
1912829
£12,72 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
£11,27 Unit Price incl. VAT
3
CLAMP-REAR BRAKE
7080983
£6,55 Unit Price incl. VAT
4
BOLT-M6X1.0X35 HXFLG ZPB
7520292
£6,55 Unit Price incl. VAT
5
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519779
£3,92 Unit Price incl. VAT
6
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
£3,92 Unit Price incl. VAT
7
SCREW
7517704
£10,14 Unit Price incl. VAT
8
MASTER BRAKE LINE; REAR; BOB
1912939
£111,56 Unit Price incl. VAT
9
SCREW
7518141
£6,76 Unit Price incl. VAT
10
BUSHING-BRAKE PIVOT
5338020
£11,75 Unit Price incl. VAT
11
BANJO SWITCH; 10 MM X 1.25 MM
1912344
£85,02 Unit Price incl. VAT
12
ASM-CALIPER REAR 32MM ADZBK [INCL. 15-17 21]
1913584-468
£395,63 Unit Price incl. VAT
12
ASM-CAL REAR 32MM ADZBK [INCL. 15-22]
1913555-468
£395,63 Unit Price incl. VAT
13
K-BLEEDER SET;CAL;J
2206140
£85,31 Unit Price incl. VAT
14
BRAKE SHIM KIT; REAR
2206684
£71,81 Unit Price incl. VAT
14
REAR CALIPER BRAKE PADS KIT
2206146
£88,60 Unit Price incl. VAT
15
SPRING AND PINS KIT
2206141
£78,74 Unit Price incl. VAT
16
K-BRACKET RRCAL J
2206147
£62,64 Unit Price incl. VAT
17
K-BOOT CAL J
2206142
£53,69 Unit Price incl. VAT
18
K-REBUILD RRCAL 32MM
2208282
£131,24 Unit Price incl. VAT
19
MOUNT CALIPER REAR BLK
5139957-468
£111,56 Unit Price incl. VAT
20
SCR-HXFL-M10X1.25X30 10.9
7520366
£12,72 Unit Price incl. VAT
21
CLIP-HOSE CABLE
5415337
£29,38 Unit Price incl. VAT
22
CABLE CLAMP
7080367
£3,92 Unit Price incl. VAT
23
COVER-ABS MODULE
4018141
£14,88 Unit Price incl. VAT
24
COVER-TYCO 2P
4018140
£14,88 Unit Price incl. VAT
25
PANDUIT STRAP
7080138
£2,84 Unit Price incl. VAT

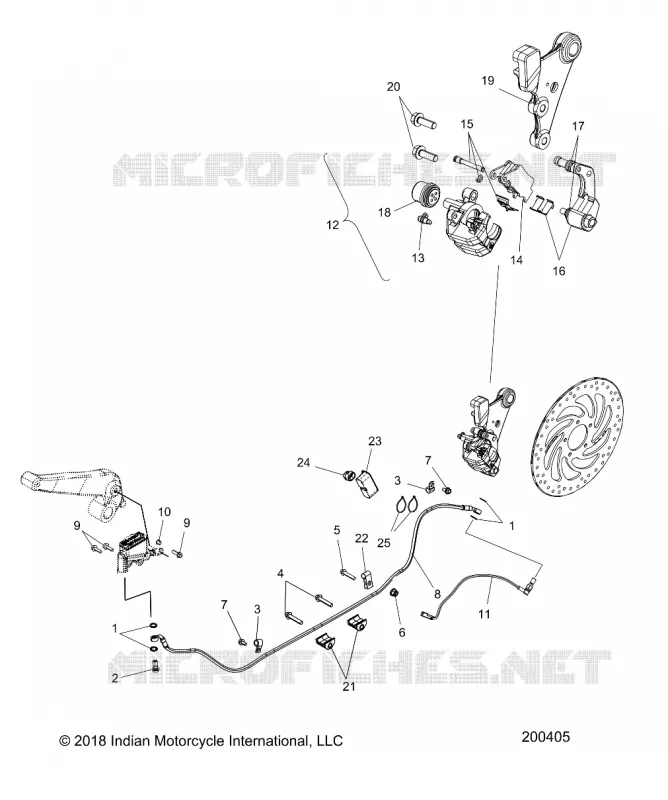

Find the detailed REAR BRAKE ASM. (NON ABS) INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
