1
Engine displacement
1000
2
Year
2016
3
Trim
SCOUT SIXTY
4
Parts Catalog
CHASSIS, SIDE STAND
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
BODYWORK - FRONT FENDER/REAR
CHASSIS, SIDE STAND
1
2
3
4
5
6
7
8
9
10
1
MOUNT SIDESTAND GLS BLACK
5139099-658
5141715-658
£132,73 Unit Price incl. VAT
2
SCR-HH-M8X1.25X35X8.8 ZPC
7520096
£11,27 Unit Price incl. VAT
3
SCREW SHOULDER
7519075
£29,38 Unit Price incl. VAT
4
ASM. SIDESTAND GLS BLACK [INCL. 5-7]
1020191-658
1022151-658
£169,55 Unit Price incl. VAT
5
TRUSS RIVET
7661064
£3,92 Unit Price incl. VAT
6
PAD-SIDESTAND N
5414970
£28,72 Unit Price incl. VAT
7
WASHER-FL 6.0X0.8(10)
7556121
£1,96 Unit Price incl. VAT
8
SIDESTAND SPRING
7043056
7045661
£85,31 Unit Price incl. VAT
9
NUT
7547039
£6,76 Unit Price incl. VAT
10
BUMPER-SIDESTAND RUBBER
5415499
£6,55 Unit Price incl. VAT

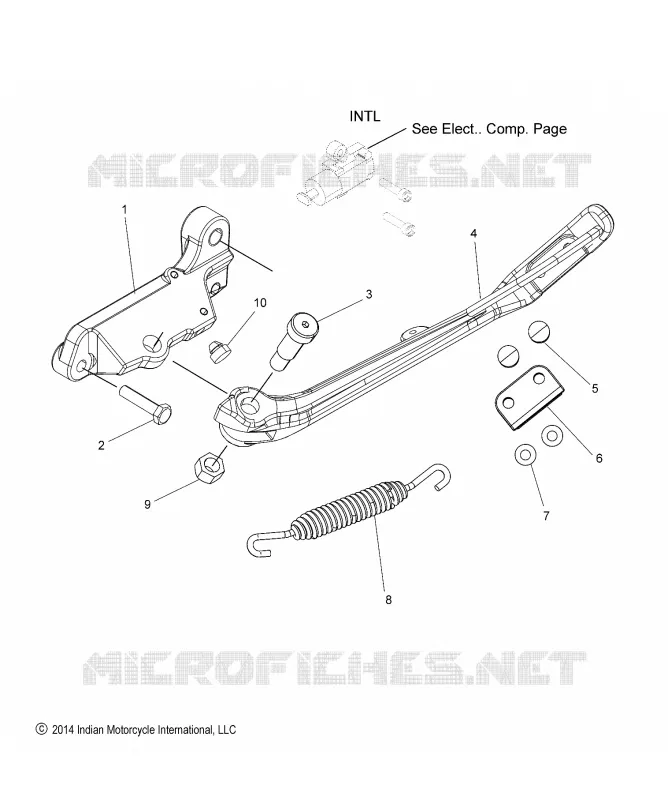

Find the detailed CHASSIS, SIDE STAND INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
