1
Engine displacement
1000
2
Year
2016
3
Trim
SCOUT SIXTY
4
Parts Catalog
ELECTRICAL, BATTERY
5
Parts Diagram
Parts Catalog
ENGINE, VALVE COVERS
by
CHASSIS, FOOTPEGS
ELECTRICAL, BATTERY
1
2
3
4
5
6
7
8
9
10
11
11
12
13
1
NUT-RECT M6X1 LPS BATTERY
7547732
£6,55 Unit Price incl. VAT
1
BATTERY BOLT KIT
2201357
£13,70 Unit Price incl. VAT
2
CABLE-BATTERY NEGATIVE 6AWG
4014327
£29,38 Unit Price incl. VAT
3
STRAP-BATTERY
5258301
9999999
Not Available
4
SCR-HXFL-M6X1.0X14 8.8 ZPB
7520143
£6,55 Unit Price incl. VAT
5
12V BATTERY; 210 CCA 12AH
4014770
4017819
£105,96 Unit Price incl. VAT
6
BOX BATTERY
5451834
£50,27 Unit Price incl. VAT
7
SOCKET HEAD SCREW; 8 MM X 20 MM
7517410
£10,76 Unit Price incl. VAT
8
NUT-U M8X1.25
7547249
£7,88 Unit Price incl. VAT
9
SCR-HEXHD M8X12 0600088(10)
7517887
9999999
Not Available
10
BRKT-MOUNT FUSEBOX
1019917
£44,06 Unit Price incl. VAT
11
SCR-M6X1.0 10 HEX BUT SHLD BLK
7519203
£12,72 Unit Price incl. VAT
12
PAD-BATTERY
5814119
£7,69 Unit Price incl. VAT
13
PANDUIT STRAP
7080138
£2,84 Unit Price incl. VAT

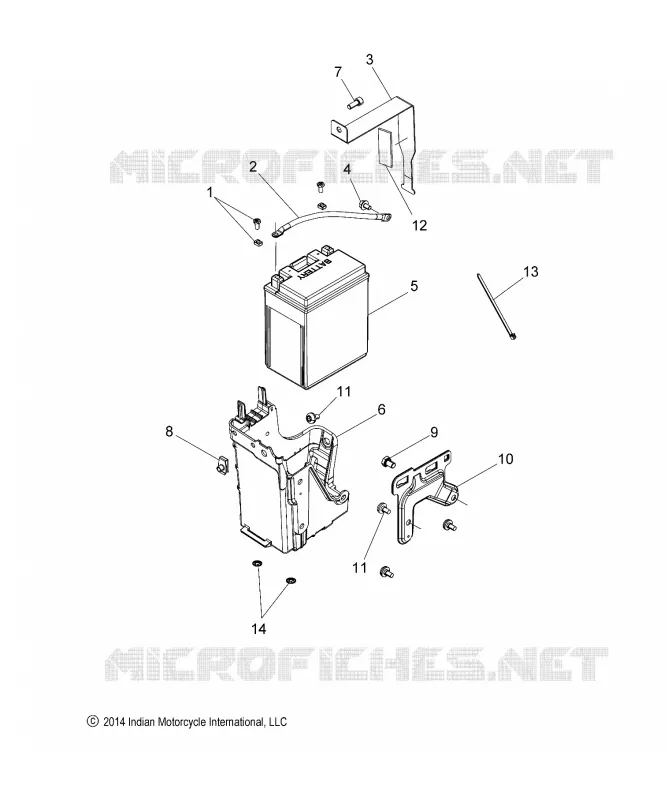

Find the detailed ELECTRICAL, BATTERY INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
