Engine displacement
1000
2
Year
2016
3
Trim
SCOUT SIXTY
4
Parts Catalog
REAR SUSPENSION ASM., SWING ARM AND SHOCKS
5
Parts Diagram
Parts Catalog
REFERENCES, OWNERS MANUAL, SPANNER WRENCH
by
DRIVE TRAIN, CLUTCH
REAR SUSPENSION ASM., SWING ARM AND SHOCKS
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
14
15
1
HEX FLANGE SCREW 12 MM X 1.75 MM X 60 MM
7520166
£16,64 Unit Price incl. VAT
2
WASHER 13 X 2.5
7556287
£10,14 Unit Price incl. VAT
3
BOLT M12 X 40 SPROCKET
7518878
£6,76 Unit Price incl. VAT
4
ASM. SHOCK REAR
1543593-266
9999999
Not Available
4
SHOCK COVER
5415436
£35,90 Unit Price incl. VAT
5
ASM-SWINGARM N
1824356
1545234-626
Not Available
6
SCR-HH-M16X1.5X340 8.8 ZPC
7519929
£48,96 Unit Price incl. VAT
7
RING-RTNG INT 42X1.72
7670149
£10,14 Unit Price incl. VAT
8
WSHR-FL 17X2.5
7556236
£10,14 Unit Price incl. VAT
9
BALL BEARING
3514414
£18,67 Unit Price incl. VAT
10
BUSHING-SWINGARM BALL BRGPM
5631478
£6,76 Unit Price incl. VAT
11
BUSHING-SWINGARM NDL BRNG
5139003
£34,27 Unit Price incl. VAT
12
SEAL
3610096
£14,69 Unit Price incl. VAT
13
PIVOT-SWINGARM
5140159
9999999
Not Available
14
NEEDLE ROLLER BEARING
3514413
£24,48 Unit Price incl. VAT
15
NUT-M16X1.5
7540001
£6,76 Unit Price incl. VAT

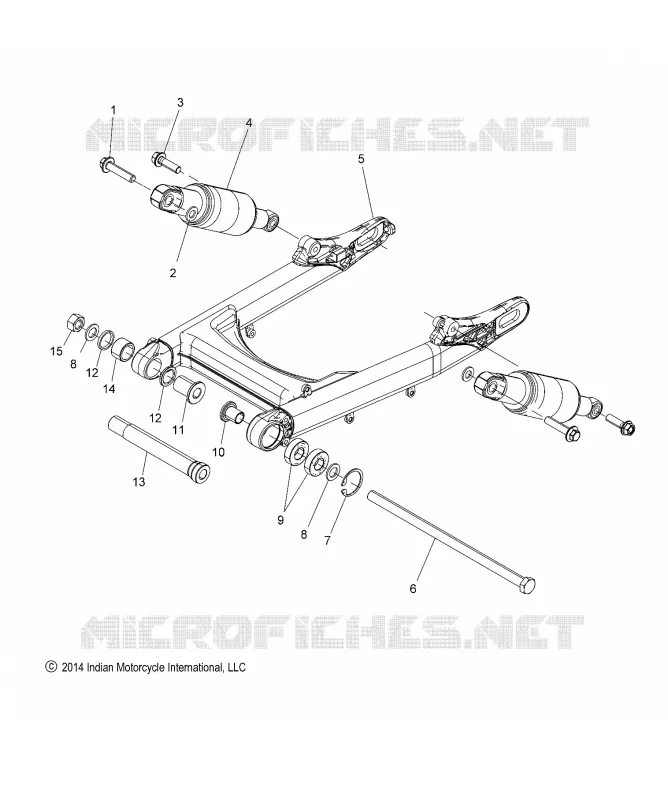

Find the detailed REAR SUSPENSION ASM., SWING ARM AND SHOCKS INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.
