Parts Catalog
FUEL SYSTEM, FUEL TANK AND TRIM
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL PUMP
by
FRONT WHEEL ASSEMBLY
FUEL SYSTEM, FUEL TANK AND TRIM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
RevA-3/8X.63 SHSS;Z(79900009)
N70100048
9999999
Not Available
2
RevA-3/8FLTWSH TYP BW(79900011
N70400014
9999999
Not Available
3
RevA-SPACER FUEL TNK REAR TOP
N72800003
9999999
Not Available
4
RevA-INDIAN SCRIPT BADGE;RH
N50600004
5633407
£64,63 Unit Price incl. VAT
5
PRE-FTK BLKSMK CLR(51200025)
N52800178
9999999
Not Available
5
RevA-FTK GRCRM GL(51200025)
N52800059
9999999
Not Available
5
RevA-FTK B SIL SCRPT(51200025)
N52800080
9999999
Not Available
5
RevA-FTK RGL SCRPT(51200025)
N52800081
9999999
Not Available
5
RevA-FTK RCRM GL(51200025)
N52800053
9999999
Not Available
5
REVA-FUEL TANKIRED/TBLK/GLD
N52800259A
9999999
Not Available
5
RevA-FTK; RED (51200025)
N52800051
9999999
Not Available
5
RevA-FTK; BLK (51200025)
N52800050
9999999
Not Available
6
RevA-FUEL CAP ASSY MY2010
N51200083
9999999
Not Available
7
RevA-FLTWSH TYP BN S(79900011)
N70496894
9999999
Not Available
8
RevB-FUEL CAP ASSY;NON FUNC
N51200029
9999999
Not Available
9
RevA-INDIAN SCRIPT BADGE;LH
N50600005
5633406
£64,63 Unit Price incl. VAT
10
RevA-VENT LINE ASSY
N51200046
9999999
Not Available
11
RevA-SPCR FUEL TNK R BOTTOM
N72800001
9999999
Not Available
12
RevB-1/4-NPT PIPE PLUG;Z/C
N71100006
9999999
Not Available
13
RevA-RING EXT FUEL LINE VITON
N73000018
9999999
Not Available
14
RevA-EXTERNAL FUEL LINE ASSY
N51200042
9999999
Not Available
15
RevA-GROMMET FUEL TANK POST
N72800009
9999999
Not Available
16
RevB-TUNNEL SPACER;FUEL TANK
N72800002
9999999
Not Available

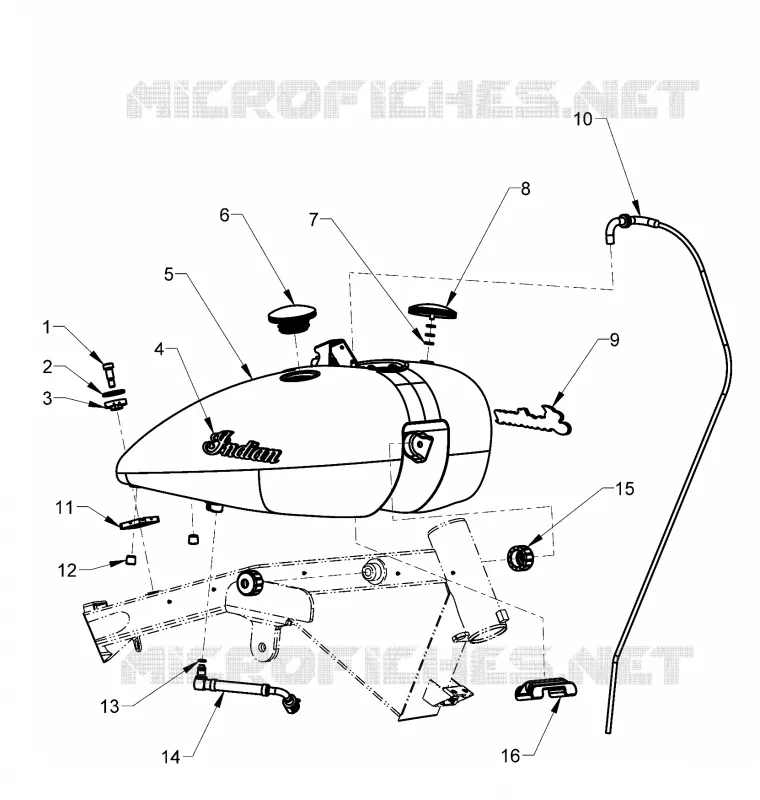

Find the detailed FUEL SYSTEM, FUEL TANK AND TRIM INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
