1
Engine displacement
1720
2
Year
2013
3
Trim
CHIEF CLASSIC / DARK HORSE / VINTAGE
4
Parts Catalog
CHASSIS, FOOTPEGS AND FLOORBOARDS
5
Parts Diagram
Parts Catalog
ELECTRICAL COMPONENTS
by
CHASSIS, FRAME AND SIDESTAND
CHASSIS, FOOTPEGS AND FLOORBOARDS
1
2
3
4
5
6
7
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
RevB-S.S. FOOT CTRL ASSY CHR
N50841091
9999999
Not Available
2
RevA-BS FOOT CTRL ASSYCHR
N50841072
9999999
Not Available
3
FLOORBOARD ASSEMBLY
N50841115
9999999
Not Available
4
RevA-PAS FOOTPEG SET;MAT BLK
N50800049
9999999
Not Available
4
RevA-PASSENGER FOOTPEG SET
N50800020
9999999
Not Available
5
RevA-PASS FLOORBOARD ASSY LH
N50800022
9999999
Not Available
6
RevA-PASS FLOORBOARD ASSY RH
N50800024
9999999
Not Available
7
RevB-3/8-16X1.25SHCS(79900003)
N70196154
9999999
Not Available
8
RevA-3/8LCKWSH SPLT R(79900015
N70496904
9999999
Not Available
9
RevA-3/8FLTWSH TYP BN(79900011
N70496895
9999999
Not Available
10
RevA-3/8FLTWSH TYP AN(79900011
N70400051
9999999
Not Available
11
RevA-1/2-13X1. SHCS;(79900003)
N70100032
9999999
Not Available
12
RevA-FLT WSHTYP B-N(79900011)
N70496892
9999999
Not Available
13
RevA-1/4-20X1.25 (79900003)
N70100049
9999999
Not Available
14
RevA-FLTWSH TYP BN S(79900011)
N70496894
9999999
Not Available
15
RevA-1/4-20 NUTNYLK(79900023)
N70396467
9999999
Not Available
16
RevB-1/4ID SPGWSH;SS;.023THK (10)
N70400043
9999999
Not Available
17
RevA-1/4-20X1. SHCS;(79900003)
N70196148
9999999
Not Available
18
RevA-1/4-20 NUT;J(79900013)
N70396853
9999999
Not Available
19
RevA-TOE PEG SET
N50800017
9999999
Not Available
20
RevB-1/4-20X.75 FHCS(79900017)
N70196147
9999999
Not Available

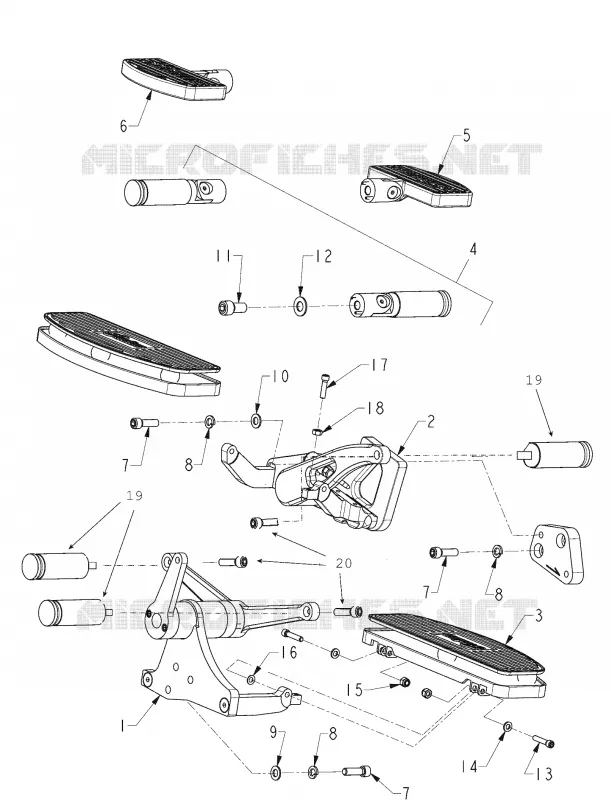

Find the detailed CHASSIS, FOOTPEGS AND FLOORBOARDS INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
