FUEL SYSTEM, EVAP SYSTEM (CALIF. AND INTL) for INDIAN CHIEFTAIN CLASSIC from 2020

FUEL SYSTEM, EVAP SYSTEM (CALIF. AND INTL)

1

FUEL LINE; PURGE TO TB

5439860

£207,23 Unit Price incl. VAT

2

CANISTER PURGE VALVE

4011303

£77,56 Unit Price incl. VAT

3

CAN TO PURGE FUEL LINE

5439859

£111,56 Unit Price incl. VAT

4

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

5

ACTIVATED CHARCOAL FILTER

2522050

£98,47 Unit Price incl. VAT

6

SCR-SOCFLGHD M6X1.0X16

7518803

£6,55 Unit Price incl. VAT

7

FITTING-EVAPLINE

5138799

£18,66 Unit Price incl. VAT

8

BUSHING-CARBON CAN

5139063

£9,01 Unit Price incl. VAT

9

SHIELD-HEAT CAN

5266749-329

£43,08 Unit Price incl. VAT

10

HEX FLANGE HEAD SCREW; 6 MM X 16 MM

7517770

£3,92 Unit Price incl. VAT

11

BSHG-ISO 6.2X10

5142474

£15,66 Unit Price incl. VAT

12

GROMMET-.38 X.62 X.28 THK;NEO

5415428

£6,55 Unit Price incl. VAT

13

TUBE-VENT CAN

5455548

£64,63 Unit Price incl. VAT

14

CLIP J

7080884

£6,55 Unit Price incl. VAT

15

STRAP BLK WEATHER-RESIST.(10)

7080492

£3,83 Unit Price incl. VAT

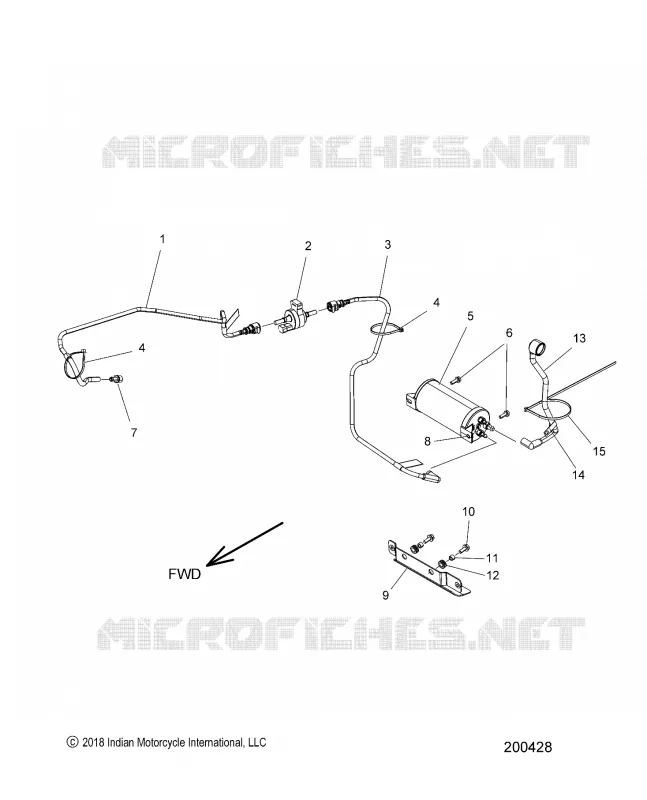

Find the detailed FUEL SYSTEM, EVAP SYSTEM (CALIF. AND INTL) INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
