FUEL SYSTEM, FUEL TANK ASM. for INDIAN CHIEFTAIN CLASSIC from 2020

BRAKES, BRAKE LINE, FRONT, ABS

FUEL SYSTEM, FUEL CLAM SHELL/THROTTLE BODY

FUEL SYSTEM, FUEL TANK ASM.

1

CONSOLE-OUTER NO GAUGE ZN CHROME

5633649-156

£596,58 Unit Price incl. VAT

2

CONSOLE-INNER BLK CHROME

5262804-03

£144,43 Unit Price incl. VAT

3

CONSOLE EDGE TRIM; 450 MM

8360133

£57,44 Unit Price incl. VAT

4

PLASTIC DART CLIP; NYLON

7670088

£2,62 Unit Price incl. VAT

5

FUEL TANK STRAP; VINYL; BLACK

2686413

£49,21 Unit Price incl. VAT

5

STRAP FUEL TANK LEATHER TAN [CHIEF VINTAGE]

2687304-05

£194,66 Unit Price incl. VAT

6

SCR-FLHD-M5X.8X8.8 ZNC

7519876

£6,55 Unit Price incl. VAT

7

NYLOK NUT

7546601

£1,96 Unit Price incl. VAT

8

FUEL ACCESS ASSEMBLY

2521374

£357,95 Unit Price incl. VAT

9

CONNECTOR-FUEL PUMP

4014261

£48,96 Unit Price incl. VAT

10

FUEL SEAL; MOLDED

5414514

£49,21 Unit Price incl. VAT

11

CAP FUEL DUMMY CHROME

2522215-156

£124,68 Unit Price incl. VAT

12

TANK FUEL

1021997-1889

1025508-1889

Not Available

12

ASM-TANK FUEL BLU/SNDS/GRFX

1021997-1801

1025508-1801

£3 350,76 Unit Price incl. VAT

12

TANK FUEL

1021997-1351

1025508-1351

£3 350,76 Unit Price incl. VAT

12

ASM-TANK FUEL BRNS/GRFX/RST

1021997-1804

1025508-1804

Not Available

12

ASM-TANK FUEL WGR/CRM/GRFX

1021997-1765

1025508-1765

£3 768,86 Unit Price incl. VAT

13

LINE-FUEL VENT TO GROUND UPR

5439857

£111,56 Unit Price incl. VAT

14

LINE-FUEL VENT TO GROUND LWR

5439858

£207,23 Unit Price incl. VAT

15

CLAMP CABLE

7080499

£7,88 Unit Price incl. VAT

16

XMAS TREE CLIP; .70 X .187 DIA

7661953

£1,96 Unit Price incl. VAT

17

FUEL LINE; HWI

5416352

£138,14 Unit Price incl. VAT

18

CAP FUEL CHROME

2522214-156

£150,71 Unit Price incl. VAT

19

FUEL FILTER KIT; INDIAN

2207067

£65,29 Unit Price incl. VAT

19

ASM. FUEL PUMP SENDER SVCBL FLTR

2522160

£590,30 Unit Price incl. VAT

20

PLUG-CONSOLE TALL

5453426

£16,54 Unit Price incl. VAT

21

SCR-BTNHD M6X12 0600095

7519000

£3,92 Unit Price incl. VAT

22

SHOULDER SCREW; 6 MM X 11.75 MM X 14 MM

7519350

£16,64 Unit Price incl. VAT

23

GROMMET; .38 IN X .75 IN X .5 IN

5412201

£9,01 Unit Price incl. VAT

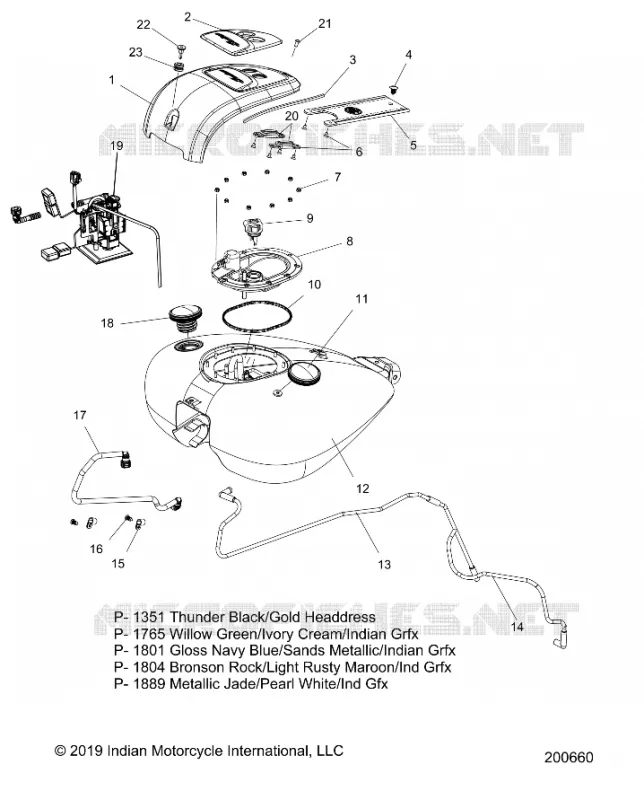

Find the detailed FUEL SYSTEM, FUEL TANK ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
