REAR WHEEL for INDIAN ROADMASTER DARK HORSE from 2021

REAR WHEEL

1

TIRE-RR 180/60R16 CRSTEC I-SPC

5417526

£342,54 Unit Price incl. VAT

2

BALL BEARING; 20 MM X 52 MM X 15 MM

3514405

£24,48 Unit Price incl. VAT

3

ASM. WHEEL REAR 16x5.0 CAST BLACK M (INCL. 2 6 7 12)

1523060-440

£1 075,10 Unit Price incl. VAT

4

SCREW

7519796

£12,72 Unit Price incl. VAT

5

TIRE PRESSURE SENSOR

2412417

2208712

£207,23 Unit Price incl. VAT

6

SPACER-BEARING CENTER RR WHL

5138424

£50,27 Unit Price incl. VAT

7

SEAL; 30 X 52 X 7

3610094

£39,17 Unit Price incl. VAT

8

SPACER-BRG FRT WHEEL LEFT PM

5631481

£6,55 Unit Price incl. VAT

9

ROTOR BRAKE 7MM BLACK

1911692-266

£464,70 Unit Price incl. VAT

10

RING TONE ABS

5633606

£39,17 Unit Price incl. VAT

11

SCR-HXFL M8X1.25X25 GEOMET

7521014

£2,62 Unit Price incl. VAT

12

VALVE STEM; 90 DEG

1522151

£50,27 Unit Price incl. VAT

13

STEEL WEIGHT; 7G; BLACK

1522980

1525326

£7,88 Unit Price incl. VAT

14

FUJILOCK NUT; 18 MM X 1.5 MM

7547667

£44,06 Unit Price incl. VAT

15

ADJUSTER-AXLE LH

5258353

£64,63 Unit Price incl. VAT

16

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

£1,96 Unit Price incl. VAT

17

ADJUSTER-AXLE M10X1.5

1025244

1026121

£16,54 Unit Price incl. VAT

18

SPACER-WHEEL RR RH

5634186

£6,55 Unit Price incl. VAT

19

AXLE ASSEMBLY REAR

1020204

5916583

£89,48 Unit Price incl. VAT

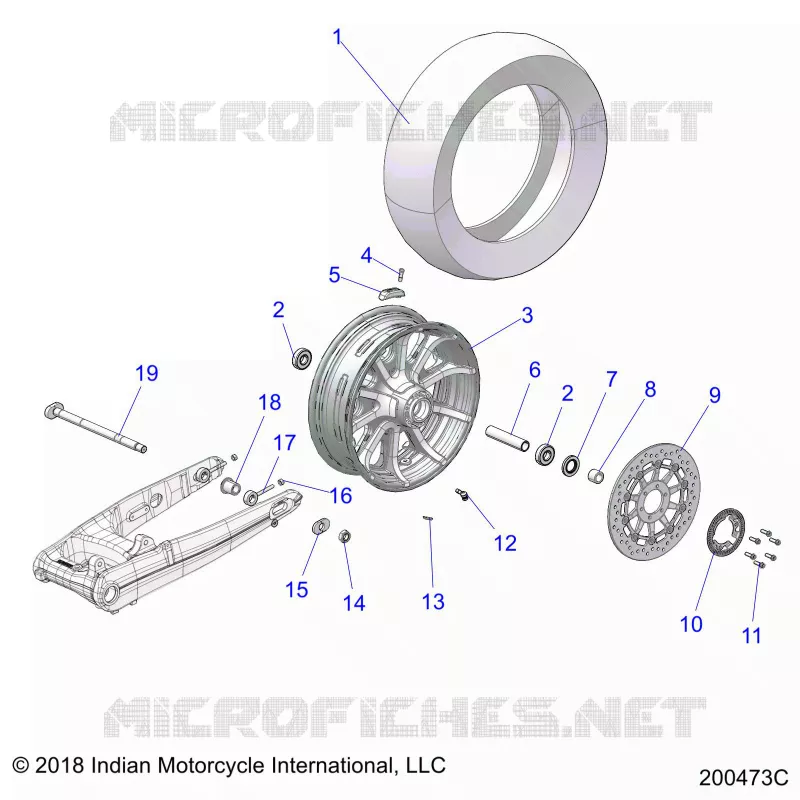

Find the detailed REAR WHEEL INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
