TRUNK BASE MOUNTING ASM. for INDIAN ROADMASTER DARK HORSE from 2021

TRUNK BASE MOUNTING ASM.

1

BIN-TRUNK

5455392-463

£1 075,10 Unit Price incl. VAT

1

BIN-TRUNK IND BRNSMK

5455392-731

£1 224,42 Unit Price incl. VAT

1

BIN-TRUNK

5455392-675

£1 075,10 Unit Price incl. VAT

2

LINER-TRUNK

2689678

2691927

£383,06 Unit Price incl. VAT

3

BRKT-HINGE LOWER RH

5260328

£34,27 Unit Price incl. VAT

3

BRKT-HINGE LOWER LH

5260327

£34,27 Unit Price incl. VAT

4

HINGE BRACKET; UPPER; LEFT

5260396

£58,16 Unit Price incl. VAT

4

HINGE BRACKET; UPPER; RIGHT

5260397

£58,16 Unit Price incl. VAT

5

BRCKT-ORIENTATION LANYARD LH

5260463

£34,27 Unit Price incl. VAT

5

BRCKT-ORIENTATION LANYARD RH

5260464

£34,27 Unit Price incl. VAT

6

TRUNK SEAL; LONG

5415238

£44,06 Unit Price incl. VAT

7

TRUNK SEAL; SHORT

5415311

£39,17 Unit Price incl. VAT

8

SPOOL BUSHING TRUNK

5455069

£6,55 Unit Price incl. VAT

9

WSHR-6.35X19X3.2 EPDM DURA 60A

5814206

£6,55 Unit Price incl. VAT

10

TRUNK LID CABLE

7082053

£44,06 Unit Price incl. VAT

11

SCR BTNHD M6X20

7517782

£6,76 Unit Price incl. VAT

12

SCR-BTNHD M6X12 0600095

7519000

£3,92 Unit Price incl. VAT

13

SCR-TXBH-M8X1.25X20 8.8 ZPC

7520127

£7,88 Unit Price incl. VAT

14

WASHER

7556064

£6,76 Unit Price incl. VAT

15

SCR-HXFL-M6X1.0X14 8.8 ZPB

7520143

£6,55 Unit Price incl. VAT

16

SCR-HXBH-M6X1.0X15 ZPB

7520171

£7,88 Unit Price incl. VAT

17

SCR-HXBH-M6X1.0X10 ZPC

7520201

£12,72 Unit Price incl. VAT

18

WASHER-M8 FW STL 2Y DIN 9021B

7556459

£2,62 Unit Price incl. VAT

19

ASM-BACKREST LWR TRUNK NAD VBA

2689546-VBA

£401,90 Unit Price incl. VAT

20

ASM-TRUNK FRAME BLK (INCL. 13 (QTY 8) 15 (QTY 4) 20-32)

1020560-266

2890503-266

£657,00 Unit Price incl. VAT

21

ASM-WIRE RETAINER

1021111

9999999

Not Available

22

WELD-BUMPER TRUNK GBLK

1023874-266

£270,02 Unit Price incl. VAT

23

ASM-TRUNK SIDE PLATE LH GBLK (INCL. 24 25)

1023920-266

£301,43 Unit Price incl. VAT

24

ASM-LATCH TRUNK LH BLK

1020803-266

£34,27 Unit Price incl. VAT

25

RIVET-SEMI TUB;.25X0.500 AL

7662214

£1,96 Unit Price incl. VAT

26

ASM-TRUNK SIDE PLATE RH GBLK (INCL. 25 27)

1023921-266

£301,43 Unit Price incl. VAT

27

ASM-LATCH TRUNK RH BLK

1020804-266

£34,27 Unit Price incl. VAT

28

SUPPORT TRUNK CENTER FLAT BLACK

5139657-463

£102,76 Unit Price incl. VAT

29

PISTON

*******

Not Available

30

ISOLATOR; FRONT

5414784

5418029

£9,01 Unit Price incl. VAT

31

LOCK LEVER GRIP

5414785

£17,22 Unit Price incl. VAT

32

RIVET SS (50)

7621235

£1,96 Unit Price incl. VAT

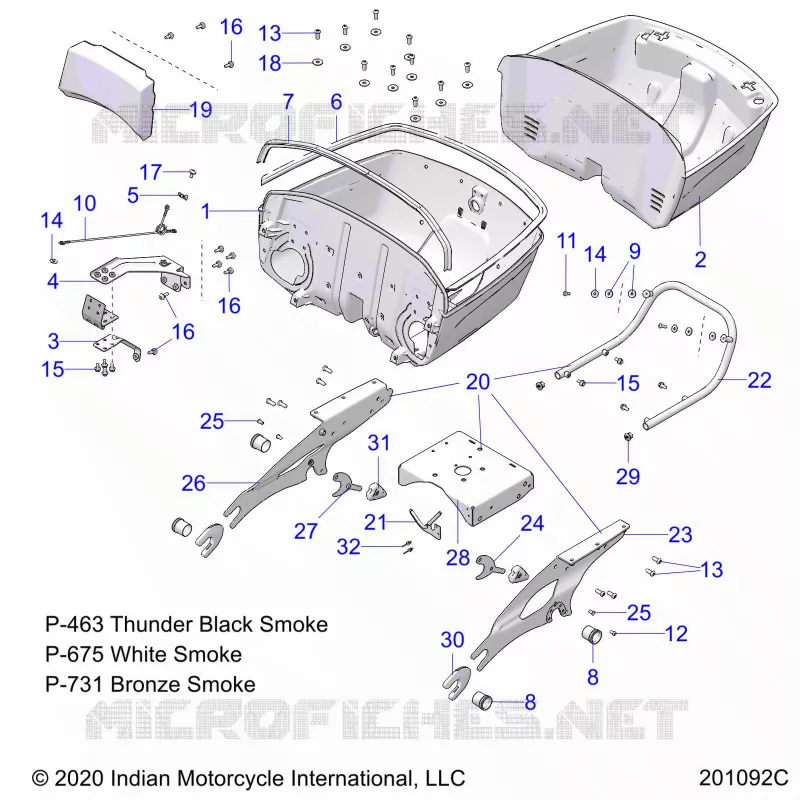

Find the detailed TRUNK BASE MOUNTING ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
