ENGINE, OIL SYSTEM for INDIAN SCOUT from 2017

ENGINE, OIL SYSTEM

1

DIPSTICK; INDIAN

5451846

£45,70 Unit Price incl. VAT

2

ADAPTER DIPSTICK BRONZE

5139173-687

9999999

Not Available

3

SEAL-DIPSTICK ADAPTER

5415005

£6,76 Unit Price incl. VAT

4

SCR SOCHD M6X15

7517775

£6,76 Unit Price incl. VAT

5

SCR-BTNHD M5X.8X12 0600129

7518817

£6,55 Unit Price incl. VAT

6

SHIELD-GEAR CRANK

5258759

5275219

Not Available

7

O-RING; .612 X .818 X .103

5413837

£6,76 Unit Price incl. VAT

8

OIL INLET PRESSURE TUBE

2521510

£85,31 Unit Price incl. VAT

9

SCR-SOCHD M6X50 0600084

7518348

£6,76 Unit Price incl. VAT

10

WASHER

7556054

£12,72 Unit Price incl. VAT

11

OIL PUMP GEAR

5452831

£45,70 Unit Price incl. VAT

12

SHIELD-GEAR OIL PUMP

5258842

£43,08 Unit Price incl. VAT

13

OIL PUMP ASSEMBLY

1205470

£200,95 Unit Price incl. VAT

14

OIL FILTER NIPPLE

2521388

£34,27 Unit Price incl. VAT

15

OIL FILTER

2520799

£14,53 Unit Price incl. VAT

16

SCR-SOCFLGHD M6X1.0X25

7520179

£7,88 Unit Price incl. VAT

17

OIL INLET SCREEN; SCAVENGE

2521285

£65,29 Unit Price incl. VAT

18

SOCKET PLUG; 12 MM X 1.5 MM

7052306

£25,85 Unit Price incl. VAT

19

COPPER WASHER

5812232

£3,66 Unit Price incl. VAT

20

DUAL SCAVENGE OIL PUMP ASSEMBLY

1205329

£188,39 Unit Price incl. VAT

21

SCREW SOCHD M6X60

7517270

£6,55 Unit Price incl. VAT

22

O-RING 12.42 X 15.98 X 1.78

5414100

£1,49 Unit Price incl. VAT

23

TUBE-SCAVENGE INLET

2521479

2522090

£71,81 Unit Price incl. VAT

24

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

£10,14 Unit Price incl. VAT

25

SCR-M5X0.8X10 SOC/CP-D

7517847

£5,24 Unit Price incl. VAT

26

ASM. PISTON COOLING JET FRONT

1205134

£64,63 Unit Price incl. VAT

27

ASM. PISTON COOLING JET REAR

1205135

£64,63 Unit Price incl. VAT

28

TUBE-SCAVENGE OIL RETURN

2521384

£78,74 Unit Price incl. VAT

29

PICKUP-SCAVENGE

2521480

£65,29 Unit Price incl. VAT

30

OIL PICKUP ASSEMBLY

2521505

2521826

£45,70 Unit Price incl. VAT

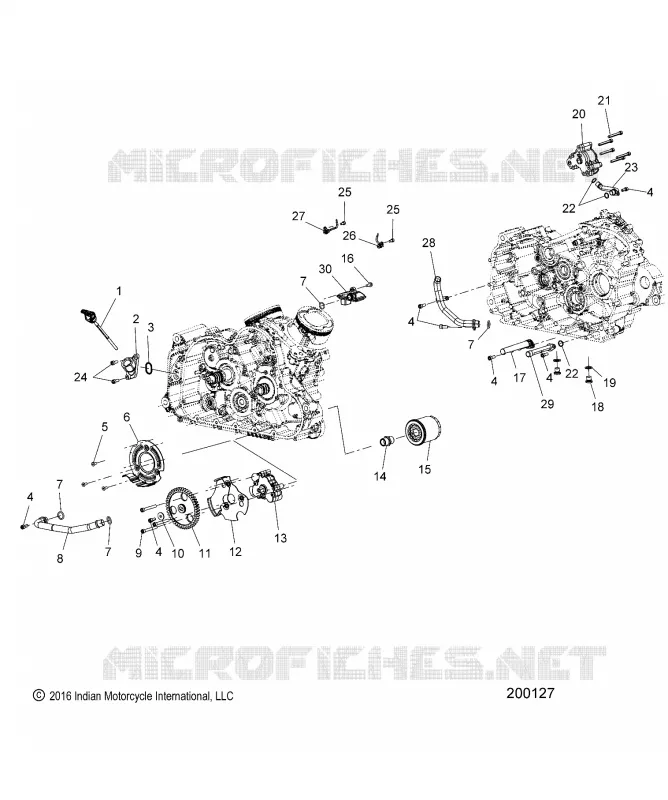

Find the detailed ENGINE, OIL SYSTEM INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
