ENGINE, COVER ASM., PRIMARY AND CLUTCH for INDIAN SCOUT from 2017

ENGINE, COVER ASM., PRIMARY AND CLUTCH

1

CLUTCH PINION SHAFT

6230774

£118,13 Unit Price incl. VAT

2

WASHER FLAT

7555872

£6,55 Unit Price incl. VAT

3

RING-RETAINING EXT 5MM

7710638

£1,49 Unit Price incl. VAT

4

SHAFT SEAL; 12 X 22 X 7

3610154

£11,27 Unit Price incl. VAT

5

NEEDLE BEARING; 12 MM X 16 MM X 10 MM

3552105

£24,48 Unit Price incl. VAT

6

BEARING NDL M7X11X9 CLTSHHF

3512106

£24,48 Unit Price incl. VAT

7

SCREW SOCHD M6X20

7517384

£10,76 Unit Price incl. VAT

8

SCREW SOCHD M6X40

7517261

£7,88 Unit Price incl. VAT

9

ASM. COVER CLUTCH [INCL. 4-6 14]

1204700-156

£571,46 Unit Price incl. VAT

10

CLUTCH COVER GASKET

5414746

£44,06 Unit Price incl. VAT

11

CABLE CLUTCH BRACKET

5259878

£34,27 Unit Price incl. VAT

12

SOCKET HEAD SCREW; 6 MM X 30 MM

7517301

£3,92 Unit Price incl. VAT

13

BRKT-CABLE MOUNT

5258982

£6,76 Unit Price incl. VAT

14

DOWEL PIN; 6 MM X 10 MM

5132835

£3,92 Unit Price incl. VAT

15

ASM. COVER PRIMARY DRIVE BRONZE [INCL. 14]

1205196-687

9999999

Not Available

16

PRIMARY COVER GASKET

5414563

£80,54 Unit Price incl. VAT

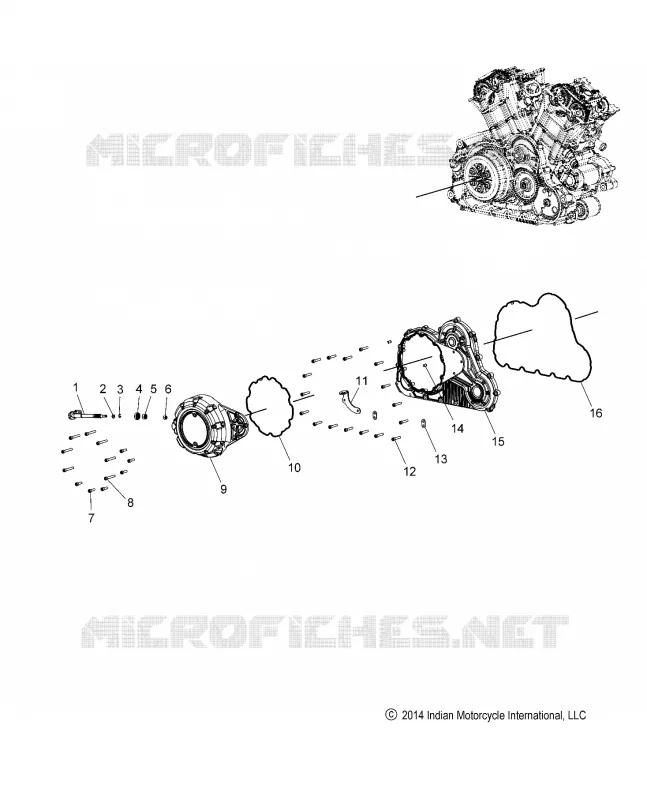

Find the detailed ENGINE, COVER ASM., PRIMARY AND CLUTCH INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
