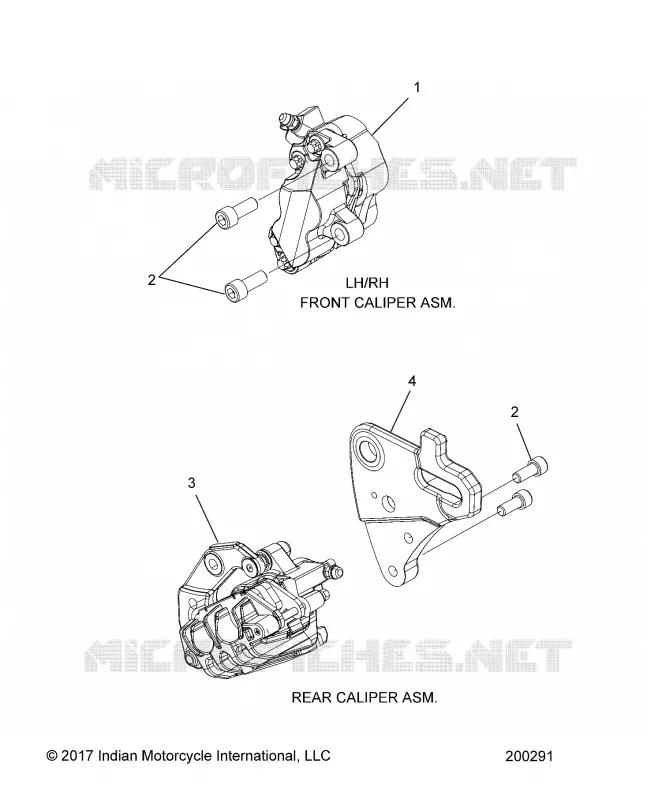

BRAKES, FRONT BRAKE CALIPERS AND REAR
1
2
2
3
4
1
ASM. CALIPER FRONT RH
1912391-266
£571,46 Unit Price incl. VAT
1
ASM. CALIPER FRONT LH
1912390-266
£571,46 Unit Price incl. VAT
1
4 PISTON BRAKE PAD SET
2204196
£88,60 Unit Price incl. VAT
1
KIT-O-RING BLEEDER SET
2204193
£50,27 Unit Price incl. VAT
1
PISTON SET KIT; 30 MM; 34 MM
2204194
£144,43 Unit Price incl. VAT
2
SOCKET HEAD SCREW; 10 MM X 25 MM
7517990
£5,24 Unit Price incl. VAT
3
KIT-BLEEDER SET;BRAKE CALIPER
2203673
£43,08 Unit Price incl. VAT
3
KIT-PISTN SET;CALIP;2POT;REAR
2203680
£138,14 Unit Price incl. VAT
3
REAR PAD SET KIT
2203679
£82,68 Unit Price incl. VAT
3
KIT-PIN BOOT;CALIP;2POT;REAR
2203684
£85,31 Unit Price incl. VAT
3
ASM. CALIPER REAR ABS
1912006-266
£546,35 Unit Price incl. VAT
4
BRKT-REAR CALIPER;UPPER
5138531
£85,31 Unit Price incl. VAT

Find the detailed BRAKES, FRONT BRAKE CALIPERS AND REAR INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
