1
Engine displacement
1800
2
Year
2018
3
Trim
SPRINGFIELD DARK HORSE
4
Parts Catalog
CHASSIS, SIDE STAND
5
Parts Diagram
Parts Catalog
REAR WHEEL
by
ENGINE, ENGINE MOUNTING
CHASSIS, SIDE STAND
1
2
3
4
5
6
7
8
9
1
NUT
7547039
£6,76 Unit Price incl. VAT
2
SIDESTAND STOP BRACKET
5257591
£24,48 Unit Price incl. VAT
3
SCREW
7517704
£10,14 Unit Price incl. VAT
4
BUMPER-RUBBER
5416707
£2,62 Unit Price incl. VAT
5
SIDESTAND FLAT BLACK
5139983-463
£188,39 Unit Price incl. VAT
6
SCREW SHOULDER
7519075
£29,38 Unit Price incl. VAT
7
SCREW SOCHD M5X16
7516610
£6,55 Unit Price incl. VAT
8
PLUNGER SIDESTAND SWITCH
4014289
£67,12 Unit Price incl. VAT
9
SIDESTAND SPRING
7043056
7045661
£85,31 Unit Price incl. VAT

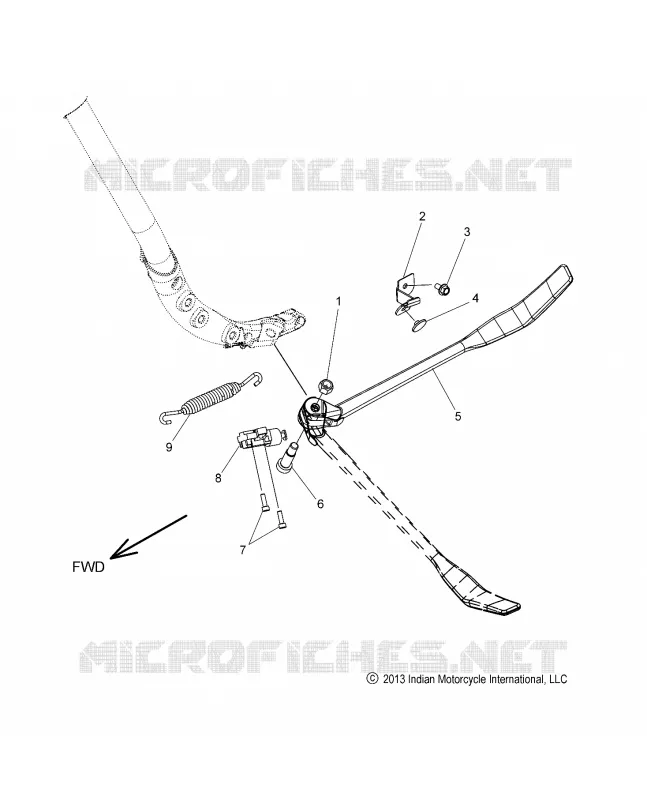

Find the detailed CHASSIS, SIDE STAND INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
