CHASSIS, FRAME for INDIAN FTR 1200 CARBON from 2022

CHASSIS, FRAME

1

ASM. MAINFRAME T-WELD IND RED

1023965-639

£2 018,82 Unit Price incl. VAT

2

SCR-HXFL-M12X1.75X40 10.9 ZPC

7521028

9999999

Not Available

3

HEADMOUNT SPACER

5142176

9999999

Not Available

4

SC-HXFL-M12X1.75X250 8.8 ZPC

7519881

£29,38 Unit Price incl. VAT

5

FRAME-MID RH

5141988-463

9999999

Not Available

6

FRAME-MID LH

5141987-463

£351,66 Unit Price incl. VAT

7

SCR-SHFL-M10X1.5X35 10.9 ZPC

7520969

9999999

Not Available

8

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

£6,76 Unit Price incl. VAT

9

SCR-SHFL-M10X1.5X20 10.9 ZPB

7520968

£6,76 Unit Price incl. VAT

10

FRAME-SUBFRAME REAR LH SLVR

5141989-385

£527,51 Unit Price incl. VAT

11

SCREW

7517704

£10,14 Unit Price incl. VAT

12

HANDLE-PASS LH SLVR

5142162-385

£131,24 Unit Price incl. VAT

13

SCR-HXBH-M8X1.25X20 8.8 ZPB

7521291

£6,55 Unit Price incl. VAT

14

SEAT SUPPORT BRACKET; REAR

5266076

9999999

Not Available

15

SEAT SUPPORT BRACKET; FRONT

5267252

9999999

Not Available

16

TANK SUPPORT ASSEMBLY; BOTTOM

1024794

£71,59 Unit Price incl. VAT

17

SCR-HXHD-M12X1.75X210 8.8 ZPC

7520931

9999999

Not Available

18

FRAME-SUBFRAME REAR RH SLVR

5141990-385

£502,38 Unit Price incl. VAT

19

HANDLE-PASS RH SLVR

5142163-385

£131,24 Unit Price incl. VAT

20

SOCKET HEAD SCREW; 6 MM X 20 MM

7517305

£6,76 Unit Price incl. VAT

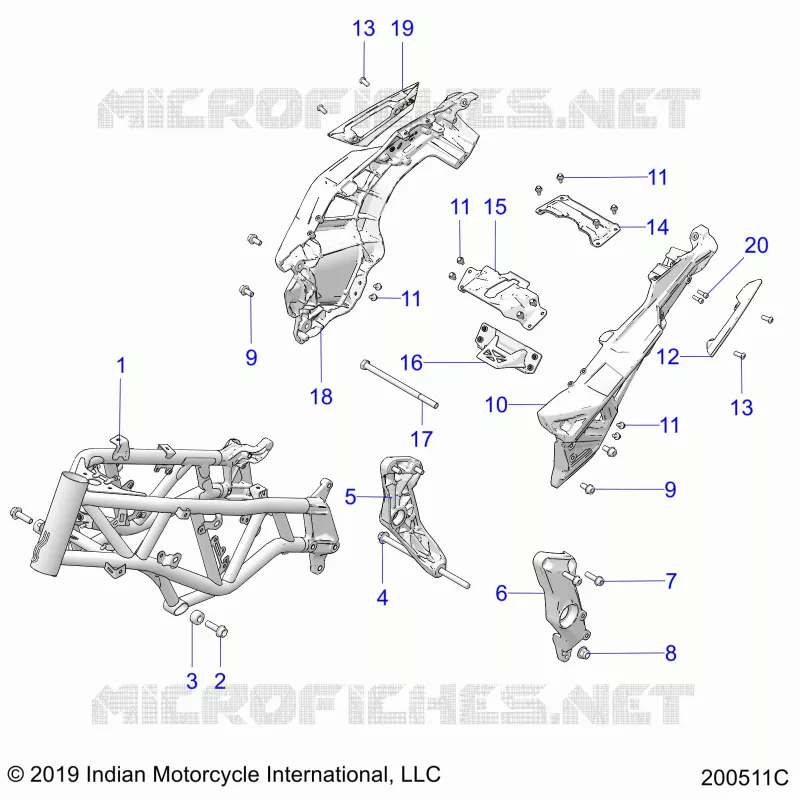

Find the detailed CHASSIS, FRAME INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
