ELECTRICAL, WIRE HARNESS - N22RZR25 (201184 for INDIAN FTR 1200 CARBON from 2022

ELECTRICAL, WIRE HARNESS - N22RZR25 (201184

1

HARNESS-CHASSIS FTR

2415580

£1 158,72 Unit Price incl. VAT

2

RETAINER-WIRES POWER

5455666

9999999

Not Available

3

CABLE TIE-FIR TREE

7082003

£5,76 Unit Price incl. VAT

4

CLIP-RETAINER COIL

5455270

£29,38 Unit Price incl. VAT

5

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

6

FUSE 10 AMP

2434016

£9,61 Unit Price incl. VAT

7

MINI BLADE FUSE; 7.5

4011068

£18,66 Unit Price incl. VAT

8

FUSE 5 AMP

4011652

£18,66 Unit Price incl. VAT

9

FUSE-ATC 40 AMP

4012421

£50,27 Unit Price incl. VAT

10

CONNECTOR-16 PIN;MP100W

4013048

£64,63 Unit Price incl. VAT

11

COVER-CONNECTOR SAE

4015736

£7,69 Unit Price incl. VAT

12

RELAY-SPST 12V 20A SEALED HFA

4016186

4016819

£50,27 Unit Price incl. VAT

13

ATC FUSE; 25 AMP

4016618

£18,66 Unit Price incl. VAT

14

FUSEBOX COVER; TREK

4017718

9999999

Not Available

15

COVER-TYCO 4P

4018135

£9,91 Unit Price incl. VAT

16

CIRCUIT BREAKER; 10 AMP

4011371

£28,72 Unit Price incl. VAT

17

BOOT BTTRY CABLE RED POS

5411570

£9,01 Unit Price incl. VAT

18

DIAGNOSTIC COVER WITH CLIP

4012170

£14,88 Unit Price incl. VAT

19

CLIP-EDGE 1-3MM THICKNESS

7082428

£6,76 Unit Price incl. VAT

20

HARNESS-REAR TRK

2414908

£91,87 Unit Price incl. VAT

21

SCR-HXFL-M6X1.0X20 8.8 ZPB

7520122

£6,76 Unit Price incl. VAT

22

COVER- BOSCH; 2P;F

4018461

£14,88 Unit Price incl. VAT

23

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

24

CLAMP-RUBBER 84MM

5416885

£6,55 Unit Price incl. VAT

25

COVER-WIRING ABS

5455667

9999999

Not Available

26

RIVET-PLASTIC PUSH 1/4

7661927

£1,96 Unit Price incl. VAT

27

CLIP-CONNECTOR 6.35MM HOLE

7082134

£6,55 Unit Price incl. VAT

28

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

£10,14 Unit Price incl. VAT

29

HARN-DIAG IND OBDII

2415819

£71,81 Unit Price incl. VAT

30

COVER-OBD 6P F

4019466

£18,66 Unit Price incl. VAT

31

CLIP-EDGE 1-3MM THICKNESS

7082402

£10,14 Unit Price incl. VAT

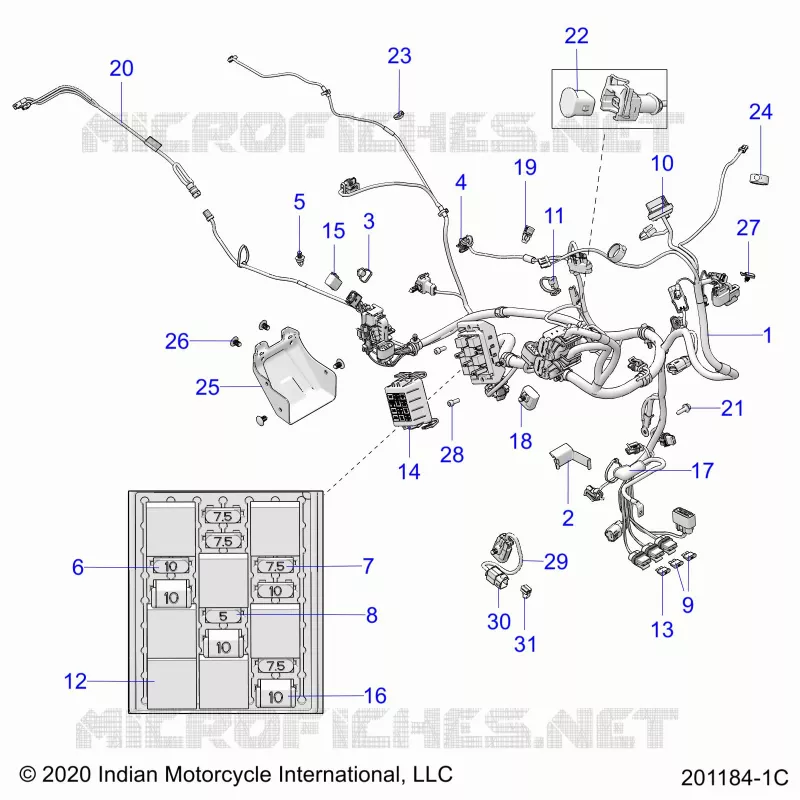

Find the detailed ELECTRICAL, WIRE HARNESS - N22RZR25 (201184 INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
