1
Engine displacement
1720
2
Year
2012
3
Trim
CHIEF CLASSIC / VINTAGE / DARK HORSE
4
Parts Catalog
FRONT FENDER ASSEMBLY
5
Parts Diagram
Parts Catalog
ENGINE SENSORS SWITCHES
by
CHASSIS, FRAME AND SIDESTAND
FRONT FENDER ASSEMBLY
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
-
RevC-KIT CALIPER COVERS
N90500386
9999999
Not Available
1
RevA-FRLNGFNDR GRNCRM(51100006
N52800009
9999999
Not Available
1
RevA-FR LNGFNDR;BLK(51100006)
N52800000
9999999
Not Available
1
RevD-FRONT LONG FENDER ECOAT
N51100000
9999999
Not Available
1
RevA-FR LNGFNDR;RD(51100006)
N52800001
9999999
Not Available
1
RevA-FRLNGFNDR RCRM(511000006
N52800003
9999999
Not Available
1
RevA-FRLNGFNDR TQ-W(51100006
N52800008
9999999
Not Available
1
PRE-FR LNGFNDR;BLKSMK(51100006
N52800176
9999999
Not Available
2
RevA-ANTIRATTLE PAD; FNDR; R
N51126538
9999999
Not Available
3
RevA-IND HEAD LED LT ASSYCHR
N60600008
9999999
Not Available
3
RevA-IND HEAD LED LGHT ASSYB
N60600009
9999999
Not Available
4
RevA-IND HEAD FNDR LIGHT GSKT
N51300004
9999999
Not Available
5
RevA-CAL CVR;L;WTR WT(59900250
N50200044
9999999
Not Available
5
COVER; CALIPER; LH; ECOAT
N50200030
9999999
Not Available
5
RevC-CALIPER CVRLHCHR
N50200027
9999999
Not Available
5
RevA-CAL CVR;L;IV CRM(59900250
N50200042
9999999
Not Available
5
RevA-CAL CVR;L;IND RD(59900250
N50200036
9999999
Not Available
5
RevA-CAL CVR;L;THR B(59900250
N50200034
9999999
Not Available
6
Asm. Tip Front Fender Frt
N90500331
9999999
Not Available
6
RevB-FR FNDR TIP ADHSV PAD 1
N90500161
9999999
Not Available
7
RevB-FR FNDR TIP ADHSV PAD 2
N90500162
9999999
Not Available
7
Asm. Tip Front Fender Rr
N90500332
9999999
Not Available
8
Trim Fender Chrome [4 Feet]
N51129108-122
9999999
Not Available
9
RevA-VINT SCRIPT FNDR BADGE
N50600001
9999999
Not Available
10
RevA-5/16-24 ACORNCR(79900025)
N70300024
9999999
Not Available
11
RevA-5/16 FLTWSH;CHR(79900011)
N70400068
9999999
Not Available
12
RevA-ZIP TIEW/T-STUD MTG BASE
N71096260
9999999
Not Available
13
RevA-5/16-18x1.13 (79900003)
N70133197
9999999
Not Available
14
RevA-5/16-18X.75 (79900003)
N70196876
9999999
Not Available
15
RevB-8-32X.1. FHCS;Z(79900017)
N70100075
9999999
Not Available
15
RevA-8-32X1. FHCS;/B(79900017)(10)
N70100101
9999999
Not Available
16
RevA-8-32NUT NYLK GB(79900023)
N70397009
9999999
Not Available
17
RevA-8 FLTWSH;B-W;STL(79900011)
N70400049
9999999
Not Available
18
RevA-1/4-20 NUTNYLK(79900023)
N70396467
9999999
Not Available
19
RevA-FLTWSH TYP BN S(79900011)
N70496894
9999999
Not Available
20
RevA-CAL CVR;R;IV CRM(59900250
N50200043
9999999
Not Available
20
RevC-CALIPER CVRRHCHR
N50200028
9999999
Not Available
20
RevA-CAL CVR;R;IND R(59900250)
N50200037
9999999
Not Available
20
RevA-CAL CVR;R;THR B(59900250
N50200035
9999999
Not Available
20
RevA-CAL CVR;R;WTR WT(59900250
N50200045
9999999
Not Available
20
COVER; CALIPER; RH; ECOAT
N50200031
9999999
Not Available

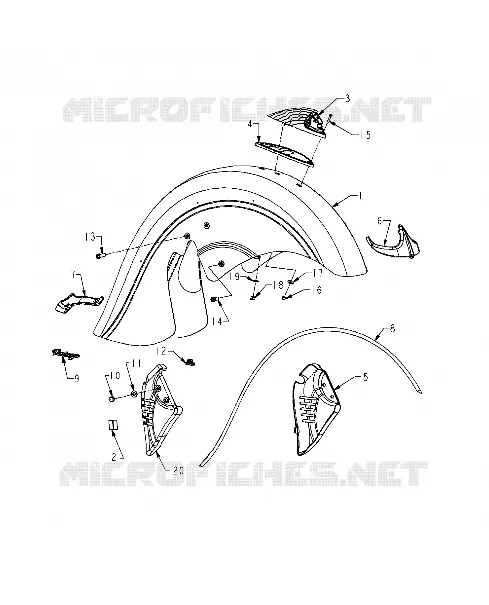

Find the detailed FRONT FENDER ASSEMBLY INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
