ELECTRICAL, WIRE HARNESS for INDIAN CHIEFTAIN ELITE from 2022

ELECTRICAL, WIRE HARNESS

1

HARNESS-CHASSIS TOURING;IND;V8

2416208

2415329

£1 959,08 Unit Price incl. VAT

2

FUSEBOX-JCASE 3FUSE 1STUD

4013563

£91,87 Unit Price incl. VAT

2

COVER-FUSEBOX JCASE 3 FUSE

4013565

£72,18 Unit Price incl. VAT

3

CARTRIDGE FUSE

4013891

£43,08 Unit Price incl. VAT

4

FUSE-CARTRIDGE 50A

4013892

£35,90 Unit Price incl. VAT

5

DECAL-JCASE

7179952

£9,61 Unit Price incl. VAT

6

LABEL-FUSE BOX;V4

7189849

£0,01 Unit Price incl. VAT

7

CIRCUIT BREAKER; 20 AMP

4011372

£64,63 Unit Price incl. VAT

8

MINI BLADE FUSE; 7.5

4011068

£18,66 Unit Price incl. VAT

9

CIRCUIT BREAKER; 10 AMP

4011371

£28,72 Unit Price incl. VAT

10

FUSE PARK 20 AMP (10)

2434017

4012811

£13,22 Unit Price incl. VAT

11

FUSE 5 AMP

4011652

£18,66 Unit Price incl. VAT

12

FUSE 10 AMP

2434016

£9,61 Unit Price incl. VAT

13

FUSE-MINI BLADE;15 AMP

2410280

4010859

£13,22 Unit Price incl. VAT

14

FUSE 25 AMP

4011653

£14,88 Unit Price incl. VAT

15

RELAY-SPST 12V 20A SEALED HFA

4016186

4016819

£50,27 Unit Price incl. VAT

16

M5 CLIP; STUD MOUNT TIE; 146 MM

7081909

£6,55 Unit Price incl. VAT

17

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

18

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

19

CLAMP-RUBBER COATED;.75 ID

7081116

£10,14 Unit Price incl. VAT

20

HARNESS-CHT SENSOR JUMPER

4014350

£50,27 Unit Price incl. VAT

21

CLIP-EDGE SIDE W/STRAP

7081876

9999999

Not Available

21

BASIC CONSOLE HARNESS; 7 IN

2413580

£78,74 Unit Price incl. VAT

22

NYLOCK FLANGE NUT; 6 MM

7547274

£1,96 Unit Price incl. VAT

23

HEX FLANGE HD SCREW; 6 MM X 12 MM

7517257

£11,75 Unit Price incl. VAT

24

DIAGNOSTIC COVER WITH CLIP

4012170

£14,88 Unit Price incl. VAT

25

COVER- BOSCH; 2P;F

4018461

£14,88 Unit Price incl. VAT

26

COVER- MOLEX; MX150; 16P; F

4018281

£13,22 Unit Price incl. VAT

27

COVER-JST 4P FEMALE

4018238

£18,66 Unit Price incl. VAT

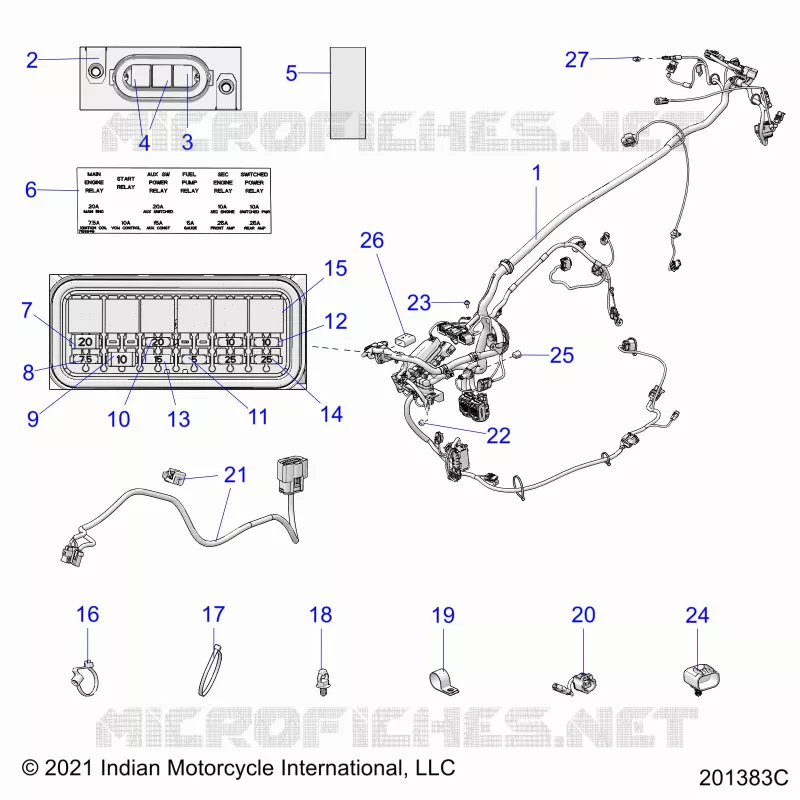

Find the detailed ELECTRICAL, WIRE HARNESS INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
