REAR SUSPENSION ASM., SWING ARM AND SHOCKS for INDIAN SCOUT SIXTY from 2018

REAR SUSPENSION ASM., SWING ARM AND SHOCKS

1

HEX FLANGE SCREW 12 MM X 1.75 MM X 60 MM

7520166

£16,64 Unit Price incl. VAT

2

WASHER 13 X 2.5

7556287

£10,14 Unit Price incl. VAT

3

BOLT M12 X 40 SPROCKET

7518878

£6,76 Unit Price incl. VAT

4

RETAINER-SPRING

5263546

£62,64 Unit Price incl. VAT

4

SPRING-DUAL RATE BLK

7044754-266

£182,11 Unit Price incl. VAT

4

SHOCK COVER

5415436

£35,90 Unit Price incl. VAT

4

ASM. SHOCK [INCL SPRING RETAINER]

1543748-650

£439,58 Unit Price incl. VAT

4

DAMPER ASSEMBLY

1543761

1504596

Not Available

5

ASM-SWINGARM N

1824356

1545234-626

Not Available

6

SCR-HH-M16X1.5X340 8.8 ZPC

7519929

£48,96 Unit Price incl. VAT

7

RING-RTNG INT 42X1.72

7670149

£10,14 Unit Price incl. VAT

8

WSHR-FL 17X2.5

7556236

£10,14 Unit Price incl. VAT

9

BALL BEARING

3514414

£18,67 Unit Price incl. VAT

10

BUSHING-SWINGARM BALL BRGPM

5631478

£6,76 Unit Price incl. VAT

11

BUSHING-SWINGARM

5141067

£24,48 Unit Price incl. VAT

12

SEAL

3610096

£14,69 Unit Price incl. VAT

13

PIVOT-SWINGARM

5140159

9999999

Not Available

14

NEEDLE ROLLER BEARING

3514413

£24,48 Unit Price incl. VAT

15

NUT-M16X1.5

7540001

£6,76 Unit Price incl. VAT

16

CAP-SWINGARM N

5415909

9999999

Not Available

17

CVR-NUT .665IN

5415562

£10,76 Unit Price incl. VAT

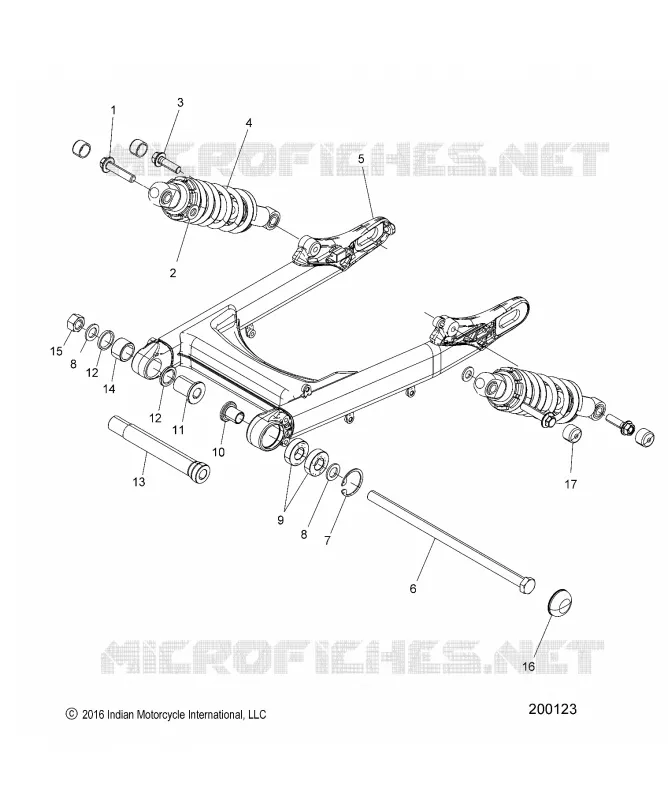

Find the detailed REAR SUSPENSION ASM., SWING ARM AND SHOCKS INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
