1
Engine displacement
1800
2
Year
2016
3
Trim
CHIEF DARK HORSE
4
Parts Catalog
PRIMARY COVER ASM.
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SHIFT PEDAL AND SHIFT LINKAGE
by
REAR WHEEL
PRIMARY COVER ASM.
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
15
17
18
1
PRIMARY COVER GASKET
5813897
£71,59 Unit Price incl. VAT
2
ASM. PRIMARY COVER BLK [INCL. 5 7 8]
1205125-521
£806,33 Unit Price incl. VAT
3
RING-RETAINING EXT 5MM
7710638
£1,49 Unit Price incl. VAT
4
WASHER FLAT
7555872
£6,55 Unit Price incl. VAT
5
BEARING NDL M7X11X9 CLTSHHF
3512106
£24,48 Unit Price incl. VAT
6
CLUTCH PINION
6230585
£144,43 Unit Price incl. VAT
7
NEEDLE BEARING; 12 MM X 16 MM X 10 MM
3552105
£24,48 Unit Price incl. VAT
8
SHAFT SEAL; 12 X 22 X 7
3610154
£11,27 Unit Price incl. VAT
9
LEVER CLUTCH PINION
5139081-425
9999999
Not Available
10
SOCKET HEAD SCREW
7517259
£7,88 Unit Price incl. VAT
11
SOCKET HEAD SCREW; 8 MM X 75 MM
7518685
£3,92 Unit Price incl. VAT
12
SCR-HXSOC M8X35 ZPC
7518347
£7,88 Unit Price incl. VAT
13
PRIMARY PAD CAP COVER; ROUND
5414687
£71,81 Unit Price incl. VAT
14
COVER PRIMARY CAP CHROME
5257410-156
9999999
Not Available
15
SCREW
7517405
£12,72 Unit Price incl. VAT
16
SCREW
7517405
£12,72 Unit Price incl. VAT
17
COVER ACCESS HOLE BLACK
5138847-521
9999999
Not Available
18
PRIMARY ACCESS HOLE SEAL
5414829
£44,06 Unit Price incl. VAT

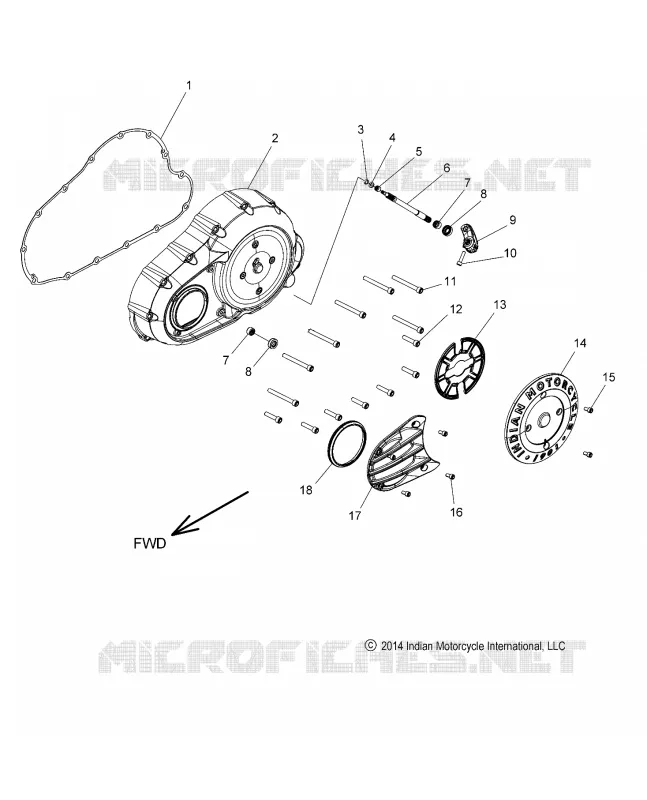

Find the detailed PRIMARY COVER ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
