FUEL SYSTEM, FUEL TANK ASM. for INDIAN SCOUT BOBBER from 2019

FUEL SYSTEM, EVAP SYSTEM, CALI./INTL

FUEL SYSTEM, FUEL TANK MOUNTING

FUEL SYSTEM, FUEL TANK ASM.

1

SOCKET HEAD SCREW; 5 MM X 25 MM

7518086

£7,88 Unit Price incl. VAT

2

ASM. IGN/FUEL/FORK LOCK INTL BLK [INTL.][INCL. IGN. and FUEL LOCK]

4016936-266

£257,46 Unit Price incl. VAT

2

ASM. IGN./FUEL BLACK [INCL. FUEL LOCK IGN. SWITCH]

4016935-266

£244,91 Unit Price incl. VAT

3

ASM. FUEL TANK BRASS SMOKE/GFX [ICON MODEL][N20MTA00AN/BN/CN/EN/XN]

1021889-1740

1024443-1740

£2 639,99 Unit Price incl. VAT

3

ASM. FUEL TANK RUBY METALLIC/GFX

1021889-1725

1024443-1725

£2 789,32 Unit Price incl. VAT

3

ASM. FUEL TANK MT NARA BRONZE/GFX [N20MTA00AL/BL/CL/EL/XL]

1021889-1642

9999999

Not Available

3

ASM. FUEL TANK WHITE SMOKE/GFX

1021889-1717

9999999

Not Available

3

ASM. FUEL TANK BLUE FIRE METALLIC/GFX

1021889-1724

1024443-1724

Not Available

3

ASM. FUEL TANK BLACK

1021889-266

1024443-266

£2 651,94 Unit Price incl. VAT

3

ASM. FUEL TANK FLAT BLACK

1021889-463

1024443-463

£2 501,24 Unit Price incl. VAT

4

HOSE CLAMP

7080003

£2,44 Unit Price incl. VAT

5

VENT FUEL LINE

5450688

£71,81 Unit Price incl. VAT

6

LINE-WTR DRAIN

5450687

£50,27 Unit Price incl. VAT

7

LINE-VENT TO GND

5453068

£50,27 Unit Price incl. VAT

8

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

9

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

10

FUEL SEAL PFA

5414830

£44,06 Unit Price incl. VAT

11

FUEL PUMP BOTTOM

2521733

£596,58 Unit Price incl. VAT

11

ASM-FILTER FUEL SRVC

2521405

2521898

£89,48 Unit Price incl. VAT

11

THERMISTOR; MS

2521798

£50,27 Unit Price incl. VAT

12

HEX HEAD BOLT; 5 MM X 0.8 MM X 16 MM

7519765

£2,62 Unit Price incl. VAT

13

FUEL LINE TANK TO RAIL

5415871

5417407

£98,44 Unit Price incl. VAT

14

ASM-ADAPTER VENT

2635426

£9,91 Unit Price incl. VAT

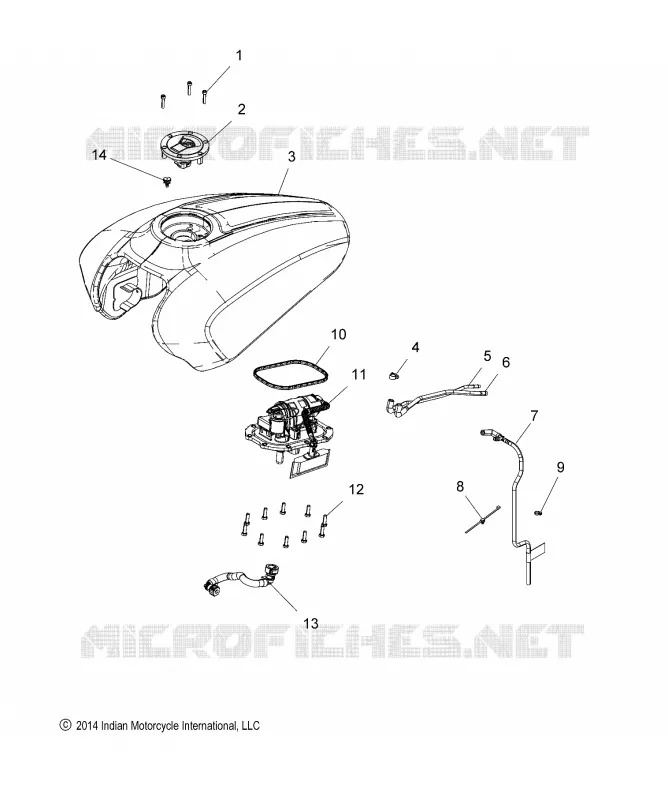

Find the detailed FUEL SYSTEM, FUEL TANK ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
