ENGINE, AIR INTAKE SYSTEM for INDIAN SPRINGFIELD from 2018

ENGINE, AIR INTAKE SYSTEM

1

BREATHER HOSE

5414939

£91,87 Unit Price incl. VAT

2

INSERT-AIRBOX CONNECTOR

5450308

£28,72 Unit Price incl. VAT

3

CAST AIR BOX CONNECTOR

5632801

£39,17 Unit Price incl. VAT

4

SCREW

7518141

£6,76 Unit Price incl. VAT

5

AIRBOX CONNECTOR

5414662

£71,59 Unit Price incl. VAT

6

THROTTLE BODY GASKET

5813886

£7,88 Unit Price incl. VAT

7

AIRBOX BASE

5415270

9999999

Not Available

8

RETAINER-AIR BOX CONNECTOR

1204747

£39,17 Unit Price incl. VAT

9

BOLT 5/8 LONG TORX PAN HEAD

7518238

£6,55 Unit Price incl. VAT

10

PLATE AIR FILTER RETAINER

1204919

£125,59 Unit Price incl. VAT

11

RETAINER PLATE FILTER SEAL

5414749

£19,58 Unit Price incl. VAT

12

AIR FILTER

5813976

5815068

£38,77 Unit Price incl. VAT

13

HEX FLANGE SCREW; 5 MM X 0.8 MM X 10 MM

7517795

£6,76 Unit Price incl. VAT

14

AIRBOX COVER SEAL

5414783

£7,88 Unit Price incl. VAT

15

COVER AIR BOX CHROME

5257830-156

£464,70 Unit Price incl. VAT

16

SCREW

7517406

£6,76 Unit Price incl. VAT

17

GROMMET

5414802

£6,55 Unit Price incl. VAT

18

HEX FLANGE SCREW; 6 MM X 16 MM

7518548

£2,62 Unit Price incl. VAT

19

WASHER-FLAT M6X15X3

7556485

£6,76 Unit Price incl. VAT

20

GROMMET

5414663

£6,76 Unit Price incl. VAT

21

BREATHER HOSE

5450006

£50,27 Unit Price incl. VAT

22

PLATE BLOCK OFF INTAKE EU (CHINA ONLY)

5452281

£35,90 Unit Price incl. VAT

23

PLATE BLOCK OFF AIRBOX BASE EU (CHINA ONLY)

5452280

£24,48 Unit Price incl. VAT

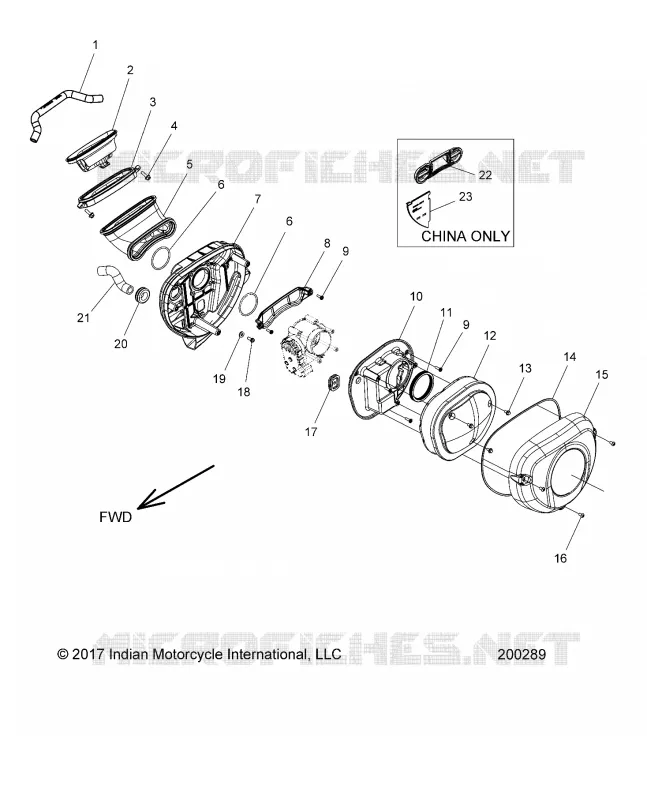

Find the detailed ENGINE, AIR INTAKE SYSTEM INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
