1
Engine displacement
1800
2
Year
2016
3
Trim
CHIEFTAIN / CHIEFTAIN DARK HORSE / ROADMASTER
4
Parts Catalog
DRIVE TRAIN, DRIVE SPROCKET, BELT AND GUARD
5
Parts Diagram
Parts Catalog
CHASSIS, FLOORBOARD, PASSENGER, ROADMASTER
by
DRIVE TRAIN, SHIFT FORKS AND DRUM

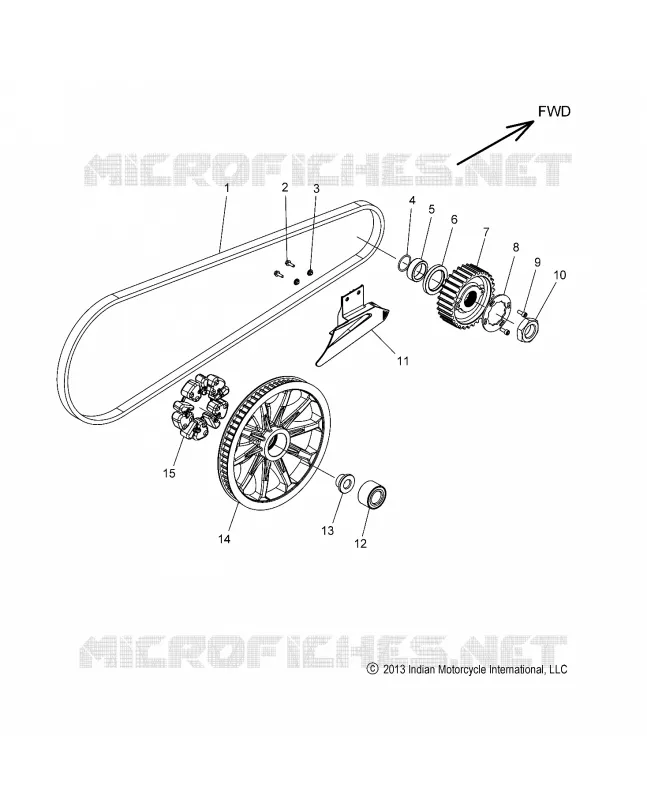

DRIVE TRAIN, DRIVE SPROCKET, BELT AND GUARD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
DRIVE BELT
3211168
£211,94 Unit Price incl. VAT
2
BOLT-M6X1.0X20 HXFLG OLIVE D
7518613
£6,55 Unit Price incl. VAT
3
TURN SIGNAL MOUNT SLEEVE
5134083
£5,24 Unit Price incl. VAT
4
O-RING 1.237 X .103
5414383
£5,89 Unit Price incl. VAT
5
DRIVE SPROCKET SPACER
5137946
£53,69 Unit Price incl. VAT
6
SEAL 44X65X10 DOUBLE V
3610210
£44,06 Unit Price incl. VAT
7
DRIVE SPROCKET; 30 TOOTH
3235414
3239352
£238,63 Unit Price incl. VAT
8
WASHER LOCK PLATE
5258737
£29,38 Unit Price incl. VAT
9
HEX FLANGE HD SCREW; 6 MM X 12 MM
7517257
£11,75 Unit Price incl. VAT
10
NUT-HEX M30X1.5
7547659
£44,06 Unit Price incl. VAT
11
GUARD-BELT LOWER
5257200
£43,08 Unit Price incl. VAT
12
RLR BEARING; CUSH DRIVE
3514795
£76,07 Unit Price incl. VAT
13
CUSH DRIVE SPACER; INNER
5139031
£34,27 Unit Price incl. VAT
14
ASM. SPROCKET CUSH DRIVE 66T BLK
1333429-521
£668,95 Unit Price incl. VAT
15
CUSH DAMPER DRIVE
5414648
£85,31 Unit Price incl. VAT

Find the detailed DRIVE TRAIN, DRIVE SPROCKET, BELT AND GUARD INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
