DRIVE TRAIN, SPROCKETS, GUARDS AND BELT for INDIAN SCOUT 1200 from 2019

DRIVE TRAIN, SPROCKETS, GUARDS AND BELT

1

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

£6,55 Unit Price incl. VAT

2

SHOULDERED SLEEVE; 6 MM

5134082

£5,24 Unit Price incl. VAT

3

GROMMET-.38 X.62 X.28 THK;NEO

5415428

£6,55 Unit Price incl. VAT

4

GUARD BELT UPPER TXBLK (TEXTURED)

5450465-626

5267493-626

£85,31 Unit Price incl. VAT

5

BELT DRIVE; 141 TOOTH X 22 MM

3211176

£169,55 Unit Price incl. VAT

6

PUCK-CUSHDR LEFT NR [FROM 3/9/2020]

5417489

£71,81 Unit Price incl. VAT

6

PUCK-CUSHDR LEFT

5414738

5417489

£71,81 Unit Price incl. VAT

7

AXLE SPACER; OUTER

5337911

£6,76 Unit Price incl. VAT

8

BEARING 25 X 25 X 15

3514823

£44,06 Unit Price incl. VAT

9

ASM. SPROCKET W/BRNG. 66T ENG WR BLK [INCL. 7 9 10}

1020399-521

£533,78 Unit Price incl. VAT

10

SPROCKET BEARING SPACER

5337916

£15,66 Unit Price incl. VAT

11

INTERNAL RETAINING RING; 52 X 2.0

7710526

£12,72 Unit Price incl. VAT

12

SCR-HXBH M6X1.0X15 8.8 ZB3 PL

7520840

£6,55 Unit Price incl. VAT

13

GUARD-BELT LOWER ASA

5451789

£43,08 Unit Price incl. VAT

14

HEX FLANGE HEAD SCREW; 6 MM X 16 MM

7517770

£3,92 Unit Price incl. VAT

15

NUT-HEX M24X1.5 JAM

7547683

£39,17 Unit Price incl. VAT

16

SCR-SOCFLGHD M6X1.0X16

7518803

£6,55 Unit Price incl. VAT

17

WASHER-LOCK M24

5260271

£29,38 Unit Price incl. VAT

18

SPROCKET-DRIVE.28T

3235557

3236020

£251,18 Unit Price incl. VAT

19

SEAL 40X X8 DB LIP FKM

3610213

£44,06 Unit Price incl. VAT

20

DRIVE SPROCKET SPACER

5139334

£39,17 Unit Price incl. VAT

21

O-RING 26.65 IN X 2.62

5412530

£2,62 Unit Price incl. VAT

22

COVER OUTER SPROCKET BLK

5633277-626

£357,95 Unit Price incl. VAT

23

RETAINER-WIRE SPROCKET

5258710

£15,66 Unit Price incl. VAT

24

SCR-SH-M6X1.0X40 A2 EP

7520025

£6,55 Unit Price incl. VAT

25

WASHER-FL 6.4X12X1.6 0600090

7556478

£5,24 Unit Price incl. VAT

26

GUARD MOUNT BRACKET

1019927

£12,72 Unit Price incl. VAT

27

HEX FLANGE HEAD SCREW; 6 MM X 12 MM

7517886

£2,62 Unit Price incl. VAT

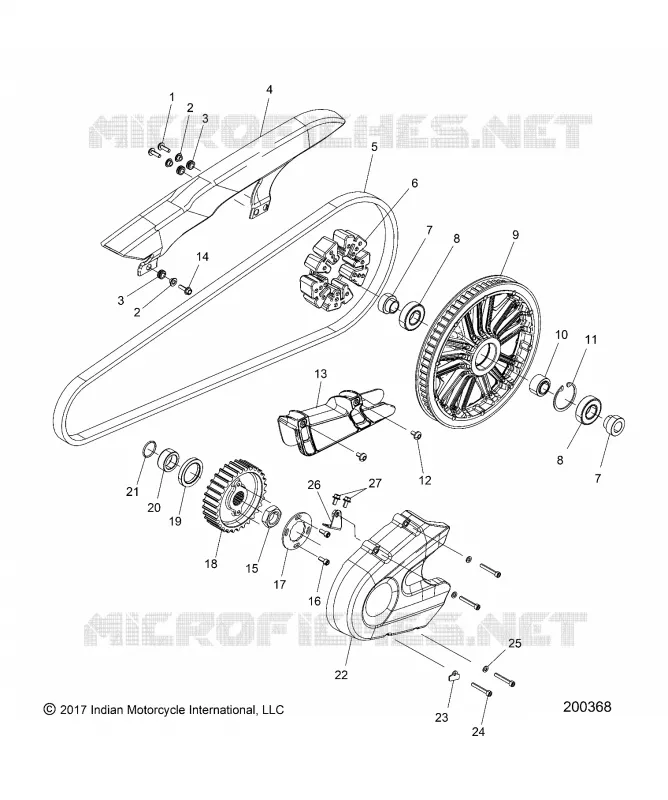

Find the detailed DRIVE TRAIN, SPROCKETS, GUARDS AND BELT INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
