SADDLEBAG ASM. (WITH AUDIO) for INDIAN CHIEFTAIN LIMITED / ELITE from 2017

SADDLEBAG ASM. (WITH AUDIO)

1

BEZEL LOCK SADDLEBAG CHROME

5450924-156

£78,74 Unit Price incl. VAT

2

LID SADDLEBAG AUDIO RH RED CND

5450594-733

9999999

Not Available

2

LID SADDLEBAG AUDIO LH RED CND

5450593-733

9999999

Not Available

3

SCR-FLANGE HD M5X12 06000086

7518338

£6,76 Unit Price incl. VAT

4

ASM. HINGE SADDLEBAG REAR CHROME [FRONT ON RH SIDE REAR ON LH SIDE]

2634925-156

£137,00 Unit Price incl. VAT

4

ASM. HINGE SADDLEBAG FRONT CHROME [FRONT ON LH SIDE REAR ON RH SIDE]

2634898-156

£137,00 Unit Price incl. VAT

5

SADDLEBAG LOCK SEAL

5414686

£3,28 Unit Price incl. VAT

6

STEERING HEAD LOCK ASSEMBLY; SADDLEBAG

2205200

£332,82 Unit Price incl. VAT

7

LOCK-ELECTRONIC SADDLEBAG

4017838

£357,95 Unit Price incl. VAT

7

SADDLEBAG HARNESS; RIGHT; INDIAN

2413896

£50,27 Unit Price incl. VAT

7

LEFTSBAG HARNESS; INDIAN; V1

2413895

£50,27 Unit Price incl. VAT

8

SOCKET HEAD SCREW; 6 MM X 20 MM

7517305

£6,76 Unit Price incl. VAT

9

HOOP BRACKET ASSEMBLY

1016590

1026382

£34,27 Unit Price incl. VAT

10

HOOP-LATCH STRIKER RH

5338191

£34,27 Unit Price incl. VAT

10

HOOP-LATCH STRIKER LH

5338190

£34,27 Unit Price incl. VAT

11

SOCKET HEAD SCREW; 4 MM X .7 MM

7518812

£6,55 Unit Price incl. VAT

12

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

£2,44 Unit Price incl. VAT

13

BRKT. HINGE RH FLAT BLACK

5138475-463

£49,21 Unit Price incl. VAT

13

BRKT. HINGE LH FLAT BLACK

5138474-463

£49,21 Unit Price incl. VAT

14

TRIM SADDLEBAG REAR CHROME

5450222-156

£91,87 Unit Price incl. VAT

15

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

16

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

17

BACKUP SADDLEBAG PLATE

5257409

£13,22 Unit Price incl. VAT

18

BRKT-MNT SDLBAG

5257139

5511003-329

£49,21 Unit Price incl. VAT

19

SADDLEBAG MOUNT PAD

5414642

£34,27 Unit Price incl. VAT

20

ASM. BIN SADDLEBAG LH RDCNDY

5454209-1627

9999999

Not Available

20

ASM. BIN SADDLEBAG RH RDCNDY

5454210-1627

9999999

Not Available

21

TRIM SADDLEBAG FRONT CHROME

5450220-156

£91,87 Unit Price incl. VAT

22

DOWEL PIN; 5/32 IN X 7/8 IN

7661970

£2,62 Unit Price incl. VAT

23

SADDLEBAG LATCH CAM

5450622

9999999

Not Available

24

WASHER 3 MM X 35 MM RUBBER

5414770

£2,62 Unit Price incl. VAT

25

SADDLEBAG LATCH SPACER

5139225

£14,69 Unit Price incl. VAT

26

SADDLEBAG ANCHOR BUSHING

5414757

£5,24 Unit Price incl. VAT

27

ANCHOR PIN

7662154

£16,64 Unit Price incl. VAT

28

SCR-SH M8X1.25X25 10.9 ZPB

7520170

£3,92 Unit Price incl. VAT

29

TOURING SPOOL

5139710

9999999

Not Available

30

SADDLEBAG SEAL

5415263

5416881

£62,64 Unit Price incl. VAT

31

WIRE COVER

5522014

£50,27 Unit Price incl. VAT

32

SADDLEBAG HARNESS CLIP; RIGHT

5452010

£10,14 Unit Price incl. VAT

32

CLIP-SADDLEBAG HARNESS;LH

5452006

£10,14 Unit Price incl. VAT

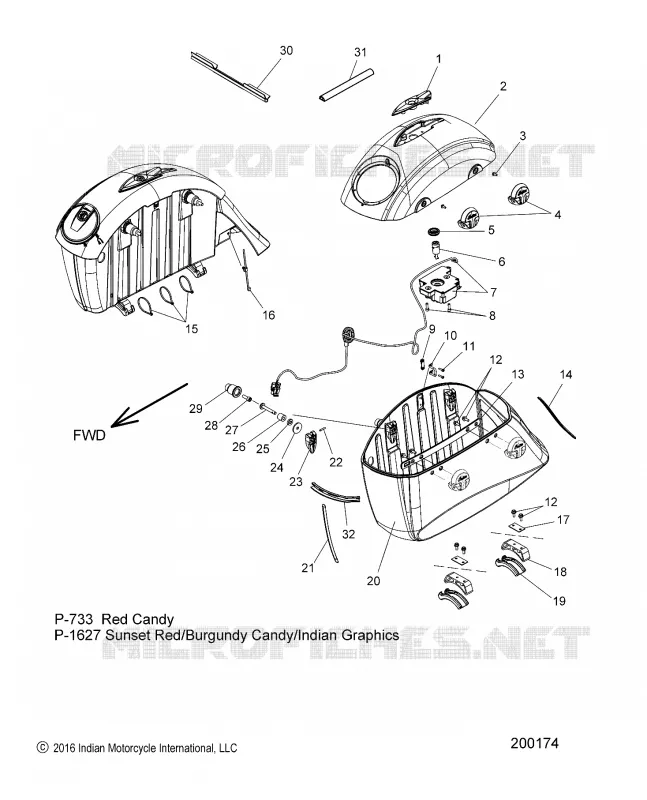

Find the detailed SADDLEBAG ASM. (WITH AUDIO) INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
