SHOCK ABSORBER for INDIAN CHIEF DARK HORSE from 2020

SHOCK ABSORBER

-

SHOCK-REAR STD

1544281

£800,35 Unit Price incl. VAT

1

BEARING; EXT. 002-00-013

1500982

£19,58 Unit Price incl. VAT

2

BRNG-INT 1.66SHAFT 003-00-060

1501123

£29,38 Unit Price incl. VAT

3

SHAFT-.5X7.07 TLG

1500440

1500247

Not Available

4

PELLET

1500724

9999999

Not Available

5

SCREW-SET 010-00-017

1500723

£34,27 Unit Price incl. VAT

6

RING; PRELOAD B/U 234-00-292

1500955

9999999

Not Available

7

VALVE-AIR

1500206

9999999

Not Available

8

EYELET BUSHING

1501010

£24,48 Unit Price incl. VAT

9

NUT LOCK

1500016

£15,66 Unit Price incl. VAT

10

HOSE SS BRAID 10 023-40-100

1501217

£150,71 Unit Price incl. VAT

11

O-RING -135 029-01-135

1501129

£7,88 Unit Price incl. VAT

12

O-RING

1500537

£9,01 Unit Price incl. VAT

13

O-RING .103W-1.549ID

1500108

£10,76 Unit Price incl. VAT

14

WIPER; SAMURAI 036-02-016-A

1501130

£35,90 Unit Price incl. VAT

15

WIPER A/N 036-02-017-A

1501131

£35,90 Unit Price incl. VAT

16

WEATHER SEAL

1501014

£16,54 Unit Price incl. VAT

17

WIRE RET.RING SS

1500538

9999999

Not Available

18

PISTON

*******

Not Available

19

PISTON

*******

Not Available

20

BODY 207-59-067

1500977

9999999

Not Available

21

PISTON

*******

Not Available

22

PISTON

*******

Not Available

23

PISTON

*******

Not Available

24

PISTON

*******

Not Available

25

PISTON

*******

Not Available

26

PISTON

*******

Not Available

27

SPRING RET.;UPPER 234-00-217

1500991

£71,81 Unit Price incl. VAT

28

SPRING RET. LOWER 234-00-351

1500988

£71,81 Unit Price incl. VAT

29

PISTON

*******

Not Available

30

SCREW AND O-RING ASSEMBLY

1500161

1501341

£44,06 Unit Price incl. VAT

31

ASM. AIR VALVE 802-00-006

1500996

£71,81 Unit Price incl. VAT

32

ASM PISTON FLOAT 805-00-086

1501154

9999999

Not Available

33

ASM BRNG .498 SHAFT 812-07-057

1501181

9999999

Not Available

34

SLEEVE LOWERFLOAT 817-00-008

1501183

9999999

Not Available

35

GUIDE NEG. SPRING 817-04-001

1501184

9999999

Not Available

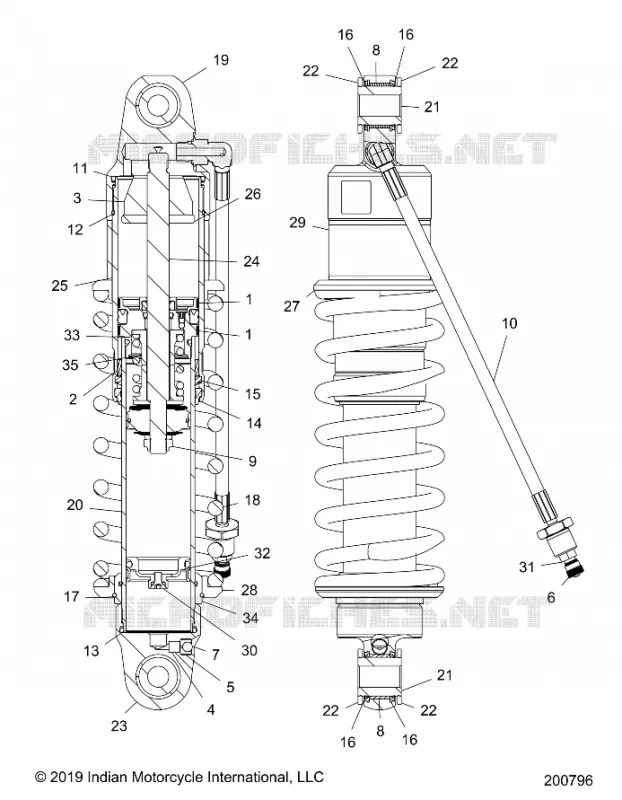

Find the detailed SHOCK ABSORBER INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
