FAIRING ASM 3 for INDIAN CHIEFTAIN ELITE from 2018

FAIRING ASM 3

1

DASH-SLVR GLTR

5452568-763

£1 911,30 Unit Price incl. VAT

2

BOLT SHOULDER M4.2 X 1.40 X 1

7518518

£2,62 Unit Price incl. VAT

3

PLUG-GARAGE OPENER

5452573

£7,69 Unit Price incl. VAT

4

BEZEL-SPEAKER RH CHROME

5452572-156

£163,27 Unit Price incl. VAT

4

ASM.-GRILL SPEAKER RH CHROME (INCL. BEZEL AND SCREEN)

2636061-156

£138,14 Unit Price incl. VAT

4

SCREEN-SPEAKER RH FLT BLK

5261937-463

£72,18 Unit Price incl. VAT

5

BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM

7519774

£6,55 Unit Price incl. VAT

6

DASH EDGE TRIM

5522231

£43,08 Unit Price incl. VAT

7

SCREEN-SPEAKER LH FLT BLK

5261936-463

£72,18 Unit Price incl. VAT

7

BEZEL-SPEAKER LH CHROME

5452571-156

£163,27 Unit Price incl. VAT

7

ASM.-GRILL SPEAKER LH CHROME (INCL. BEZEL AND SCREEN)

2636060-156

£131,87 Unit Price incl. VAT

7

FILM; PROTECTION;CLEAR

5814472

9999999

Not Available

8

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

9

BRKT. SUPPORT FAIRING LH

5262620-329

£49,21 Unit Price incl. VAT

10

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

£2,44 Unit Price incl. VAT

11

VOLUME SPEAKER LH

5451168

£76,07 Unit Price incl. VAT

12

U-CLIP SPEED NUT; 4.2 MM

7547386

£3,92 Unit Price incl. VAT

13

VOLUME SPEAKER RH

5451169

£76,07 Unit Price incl. VAT

14

BRKT. SUPPORT FAIRING RH BLK

5261480-329

£49,21 Unit Price incl. VAT

15

SCR-HXBH M4.2X1.4X25 8.8 ZOD

7519309

£10,14 Unit Price incl. VAT

16

CVR-DRVNG LIGHT LH SLVR GLTR

5452784-763

5454240-763

£200,95 Unit Price incl. VAT

17

CVR-DRVNG LIGHT RH SLVR GLTR

5452785-763

5454241-763

£200,95 Unit Price incl. VAT

18

WSHR-FL 4.3X14X0.8 0600090

7556477

£5,24 Unit Price incl. VAT

19

CVR-WIND DEFLECTOR

5452801

£3,83 Unit Price incl. VAT

20

WSHR-FL 8.4X1.6X16

7556305

£1,96 Unit Price incl. VAT

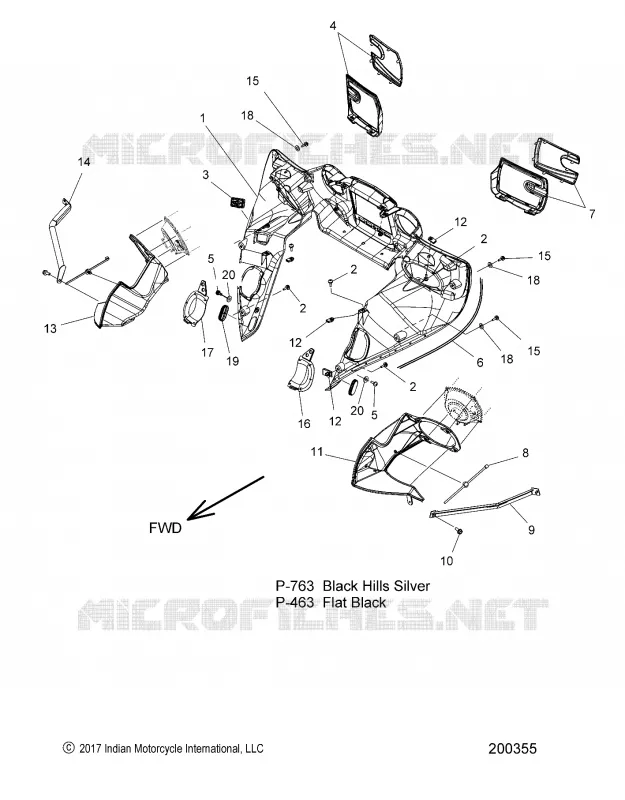

Find the detailed FAIRING ASM 3 INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
