SADDLEBAG ASM. for INDIAN CHIEFTAIN ELITE from 2022

SADDLEBAG ASM.

1

BEZEL-LOCK SADDLEBAG RH HMTSMK

5454612-802

£175,82 Unit Price incl. VAT

1

BEZEL-LOCK SADDLEBAG LH HMTSMK

5455021-802

£175,82 Unit Price incl. VAT

2

ASM-LID SBAG AUDIO LH HVYMTSMK

5456424-802

£961,62 Unit Price incl. VAT

2

ASM-LID SBAG AUDIO RH HVYMTSMK

5456425-802

£961,62 Unit Price incl. VAT

3

WASHER RUBBER

7557148

£6,76 Unit Price incl. VAT

4

TOUR LOCK KIT ASSEMBLY

2635146

£251,18 Unit Price incl. VAT

5

SADDLEBAG LOCK SEAL

5414686

£3,28 Unit Price incl. VAT

6

LOCK-ELECTRONIC SADDLEBAG

4017838

£357,95 Unit Price incl. VAT

7

SOCKET HEAD SCREW; 6 MM X 20 MM

7517305

£6,76 Unit Price incl. VAT

8

SCR-M6X1.0X16 SHLD ZPB

7521068

£5,24 Unit Price incl. VAT

9

ASM-LIMITER LID RH

2689126

£85,31 Unit Price incl. VAT

9

ASM-LIMITER LID LH

2689125

£85,31 Unit Price incl. VAT

10

WSHR-FL 4.3X14X0.8 0600090

7556477

£5,24 Unit Price incl. VAT

11

SCR-SWPH-#8X19 MAGNI BOSSCREW

7520960

£6,55 Unit Price incl. VAT

12

BLT-SHD M6X1.0 7MM 9MM POL

7521021

£6,55 Unit Price incl. VAT

13

SCR-SHLDR M6X1.0X7MM

7520993

£6,55 Unit Price incl. VAT

14

LEAF HINGE

2637439

£78,74 Unit Price incl. VAT

15

COVER-HINGE SBAG RH GR BRNZ BL

5633982-17

£207,23 Unit Price incl. VAT

15

COVER-HINGE SBAG LH GR BRNZ BL

5633981-17

£207,23 Unit Price incl. VAT

16

SEAL SADDLEBAG

5416972

£34,27 Unit Price incl. VAT

17

BIN-SADDLEBAG FLAT RH HMSMK/GX

5456382-2077

£2 150,22 Unit Price incl. VAT

17

BIN-SADDLEBAG FLAT LH HMSMK/GX

5456381-2077

£2 150,22 Unit Price incl. VAT

18

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

£2,44 Unit Price incl. VAT

19

BACKUP SADDLEBAG PLATE

5257409

£13,22 Unit Price incl. VAT

20

BRKT-MNT SDLBAG ECOAT

5511003-329

£49,21 Unit Price incl. VAT

21

SADDLEBAG MOUNT PAD

5414642

£34,27 Unit Price incl. VAT

22

GUIDE-WIRE SBAG RH

5455540

£43,08 Unit Price incl. VAT

22

GUIDE-WIRE SBAG LH

5455539

£43,08 Unit Price incl. VAT

23

COVER-WIRE SADDLEBAG RH

5455041

£18,66 Unit Price incl. VAT

23

COVER-WIRE SADDLEBAG LH

5455040

£18,66 Unit Price incl. VAT

24

HOOP BRACKET ASSEMBLY

1016590

1026382

£34,27 Unit Price incl. VAT

25

SCREW M4X12 SOCHD

7517797

£6,76 Unit Price incl. VAT

26

BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM

7519774

£6,55 Unit Price incl. VAT

27

HOOP-LATCH SBAG RH

5341018

£43,08 Unit Price incl. VAT

27

HOOP-LATCH SBAG LH

5341019

£43,08 Unit Price incl. VAT

28

SOCKET HEAD SCREW; 4 MM X .7 MM

7518812

£6,55 Unit Price incl. VAT

29

GRILL-SADDLEBAG AUDIO LH F BLK

5266586-463

£78,74 Unit Price incl. VAT

29

GRILL-SADDLEBAG AUDIO RH F BLK

5266587-463

£78,74 Unit Price incl. VAT

30

BEZEL-SADDLBAG AUDIO LH ONYXBK

5454608-800

£200,95 Unit Price incl. VAT

30

BEZEL-SADDLBAG AUDIO RH ONYXBK

5454609-800

£200,95 Unit Price incl. VAT

31

SCR-SWPH-#8X25 MAGNI BOSSCREW

7521015

£6,76 Unit Price incl. VAT

32

AMP SPEAKER; 6.5 IN; 100W

4017741

£464,70 Unit Price incl. VAT

33

SCR #10X3/4 HI/LO

7517790

£3,92 Unit Price incl. VAT

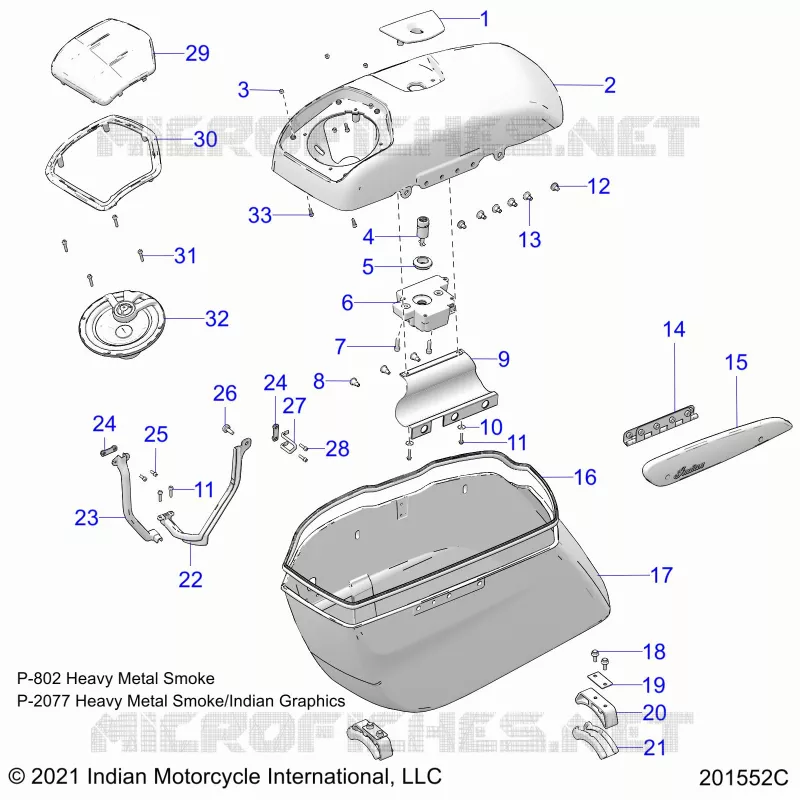

Find the detailed SADDLEBAG ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
