FUEL SYSTEM, FUEL TANK ASM. for INDIAN CHIEFTAIN / ROADMASTER from 2017

FUEL SYSTEM, FUEL TANK ASM.

-

K-SVC GPHX TANK SLVR HEADDRESS

2206123

9999999

Not Available

-

K-SVC GPHX TNK GOLD HEADDRESS

2206122

9999999

Not Available

1

CONSOLE-OUTER NO GAUGE AL PSMK

5633653-675

£596,58 Unit Price incl. VAT

1

CONSOLE-OUTER NO GAUGE ZN CHROME

5633649-156

£596,58 Unit Price incl. VAT

1

CONSOLE-OUTER NO GAUGE AL HRDP

5633653-676

£596,58 Unit Price incl. VAT

1

CONSOLE-OUTER NO GAUGE AL TBLK PRL

5633653-666

9999999

Not Available

2

CONSOLE-INNER BLK CHROME

5262804-03

£144,43 Unit Price incl. VAT

2

CONSOLE-INNER PAT3202M

5262804-01

£138,14 Unit Price incl. VAT

3

CONSOLE EDGE TRIM; 450 MM

8360133

£57,44 Unit Price incl. VAT

4

PLASTIC DART CLIP; NYLON

7670088

£2,62 Unit Price incl. VAT

5

STRAP FUEL TANK LEATHER BLACK

2685660-01

9999999

Not Available

5

STRAP FUEL TANK LEATHER DARK TAN [ROADMASTER]

2685660-05

2687304-05

£194,66 Unit Price incl. VAT

6

SCR-FLHD-M5X.8X8.8 ZNC

7519876

£6,55 Unit Price incl. VAT

7

NYLOK NUT

7546601

£1,96 Unit Price incl. VAT

8

FUEL ACCESS ASSEMBLY

2521374

£357,95 Unit Price incl. VAT

9

FUEL SEAL; MOLDED

5414514

£49,21 Unit Price incl. VAT

10

CAP FUEL DUMMY CHROME

5138538-156

2522215-156

£124,68 Unit Price incl. VAT

11

TANK FUEL [CHIEF VINTAGE]

1021997-266

1025508-266

£2 651,94 Unit Price incl. VAT

11

ASM-TANK FUEL

1021997-1549

1025508-1549

£3 494,11 Unit Price incl. VAT

11

TANK FUEL [CHIEFTAIN]

1021997-1553

9999999

Not Available

11

TANK FUEL [CHIEFTAIN]

1021997-1478

9999999

Not Available

11

TANK FUEL

1021997-1605

9999999

Not Available

11

TANK FUEL

1021997-1611

9999999

Not Available

11

TANK FUEL

1021997-1523

9999999

Not Available

11

TANK FUEL

1021997-1609

9999999

Not Available

11

TANK FUEL [ROADMASTER]

1021997-1544

9999999

Not Available

11

ASM-TANK FUEL HRDPRL/TBLK/GHDR

1021997-1536

9999999

Not Available

11

ASM-TANK FUEL

1021997-1590

1025508-1590

£3 350,76 Unit Price incl. VAT

11

TANK FUEL

1021997-1607

9999999

Not Available

11

TANK FUEL [ROADMASTER]

1021997-1486

9999999

Not Available

11

TANK FUEL [ROADMASTER]

1021997-596

9999999

Not Available

11

TANK FUEL

1021997-629

1025508-629

£3 631,49 Unit Price incl. VAT

12

LINE-FUEL VENT TO GROUND UPR

5439857

£111,56 Unit Price incl. VAT

13

LINE-FUEL VENT TO GROUND LWR

5439858

£207,23 Unit Price incl. VAT

14

CLAMP CABLE

7080499

£7,88 Unit Price incl. VAT

15

XMAS TREE CLIP; .70 X .187 DIA

7661953

£1,96 Unit Price incl. VAT

16

FUEL LINE

5414515

£138,14 Unit Price incl. VAT

17

CAP FUEL CHROME

5138508-156

2522214-156

£150,71 Unit Price incl. VAT

18

ASM-FUEL PUMPSENDERSRVC

2521632

2522160

£590,30 Unit Price incl. VAT

19

PLUG-CONSOLE TALL

5453426

£16,54 Unit Price incl. VAT

19

PISTON

*******

Not Available

20

SCR-BTNHD M6X12 0600095

7519000

£3,92 Unit Price incl. VAT

21

SHOULDER SCREW; 6 MM X 11.75 MM X 14 MM

7519350

£16,64 Unit Price incl. VAT

22

GROMMET; .38 IN X .75 IN X .5 IN

5412201

£9,01 Unit Price incl. VAT

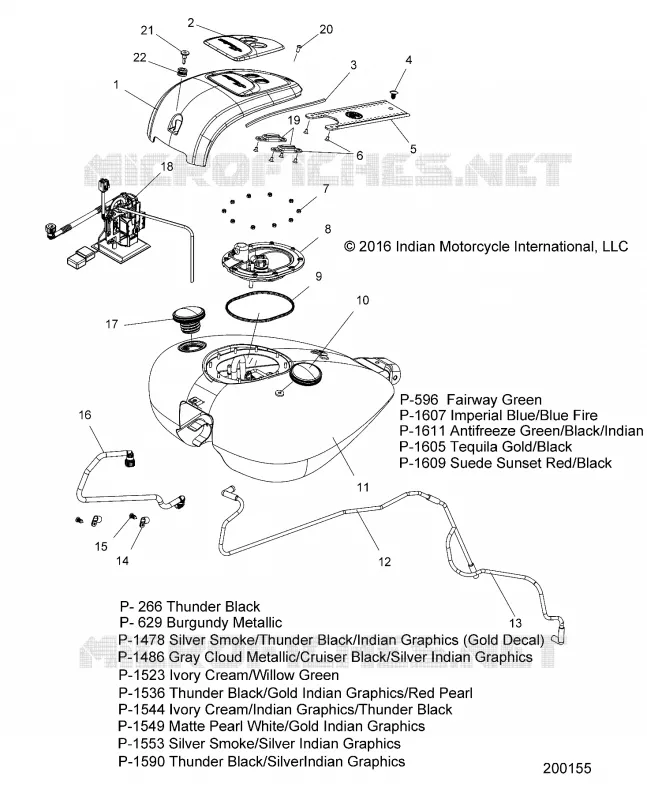

Find the detailed FUEL SYSTEM, FUEL TANK ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
