PISTON CRANKSHAFT for INDIAN SCOUT from 2015

PISTON CRANKSHAFT

1

KIT RINGS PISTON (+0.25MM)

2204735

Not Available

1

KIT RINGS PISTON (+0.50MM)

2204731

Not Available

1

STD RING KIT

2204733

£105,00 Unit Price incl. VAT

2

PISTON ASSEMBLY 99 MM

3022488

£213,50 Unit Price incl. VAT

3

C-CLIP; ROUNG(2)

7710479

£10,14 Unit Price incl. VAT

4

PISTON PIN; 22 MM X 12.8 MM X 56.6 MM

3022291

£58,75 Unit Price incl. VAT

5

ASM. CONNECTING ROD [INCL. 7]

1205310

3023055

£353,95 Unit Price incl. VAT

6

BEARING CONNECTING ROD ORANGE

3514804-159

3514966-159

£24,48 Unit Price incl. VAT

6

BEARING CONNECTING ROD BLUE

3514804-027

3514966-027

£24,48 Unit Price incl. VAT

6

BEARING CONNECTING ROD BLACK

3514804-067

3514966-067

£24,48 Unit Price incl. VAT

7

CONROD BOLT; 9 MM X 1.0 MM

7519833

£15,66 Unit Price incl. VAT

8

WOODRUFF KEY

7721122

£10,14 Unit Price incl. VAT

9

ASM-CRANKSHAFT

1204692

3023054

£1 630,58 Unit Price incl. VAT

10

ASM-GEAR CRANKSHAFT

1333086

9999999

Not Available

11

WASHER-FLAT ISO7415-M20 HARD

7556518

£12,72 Unit Price incl. VAT

12

HEX NUT; 20 MM X 1.5 MM

7547477

£19,58 Unit Price incl. VAT

13

ASM-BALANCE SHAFT

1204839

£332,82 Unit Price incl. VAT

14

WASHER-FLAT 13.5X38.5X2.7

7556771

£12,72 Unit Price incl. VAT

15

SCR-HEXHD M12X45 0600088

7518575

£29,38 Unit Price incl. VAT

16

SPRING SPLIT GEAR

7044461

Not Available

17

RETAINING RING

7710472

£7,88 Unit Price incl. VAT

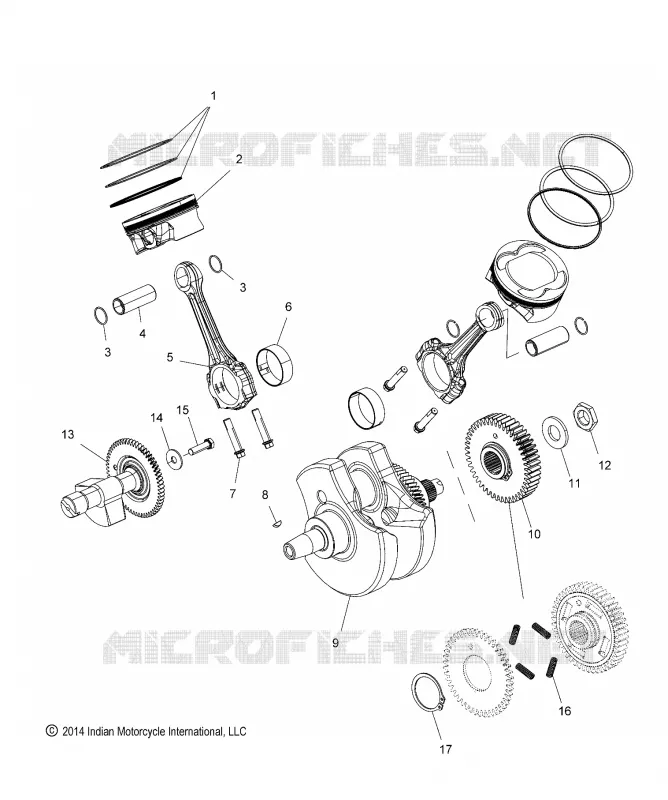

Find the detailed PISTON CRANKSHAFT INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
