ENGINE, CAM SHAFTS AND GEARS for INDIAN CHIEF DARK HORSE from 2019

ENGINE, CAM SHAFTS AND GEARS

1

ASM. CAM COVER INNER (INCL. 2 18 19(QTY. 2))

1205447

£485,27 Unit Price incl. VAT

2

PIN-DOWEL M6X10

5136879

5132835

£3,92 Unit Price incl. VAT

3

SCR-SH-M8X1.25X65 8.8 ZPC

7519813

£6,76 Unit Price incl. VAT

4

SCR-HXSOC M8X35 ZPC

7518347

£7,88 Unit Price incl. VAT

5

CAMSHAFT INTAKE ASSEMBLY; MACHINED

1205876

£319,70 Unit Price incl. VAT

6

KEY-RND END;4X4X16;DIN 6885A

7710623

£6,98 Unit Price incl. VAT

7

CAMSHAFT EXHAUST ASSEMBLY; FRONT

1205999

£548,06 Unit Price incl. VAT

8

CAMSHAFT EXHAUST GEAR ASSEMBLY

1205465

1337000

£205,52 Unit Price incl. VAT

9

CAMSHAFT GEAR INLET

6230931

6237713

£176,98 Unit Price incl. VAT

10

CAMSHAFT EXHAUST ASSEMBLY; REAR

1206000

£548,06 Unit Price incl. VAT

11

SUPPORT ASSEMBLY; OUTER CAM BEARINGS

1205448

£98,47 Unit Price incl. VAT

12

FLANGE HEAD SCREW; 5 MM X 12 MM

7517255

£10,14 Unit Price incl. VAT

13

SCREW

7517361

£29,38 Unit Price incl. VAT

14

BALL BEARING; 25 X 47 X 12

3514751

3515844

£24,48 Unit Price incl. VAT

15

WSHR-34X10X4.76 HARD

7556871

£10,14 Unit Price incl. VAT

16

HEX FLANGE SCREW; 10 X 1.5 X 40

7519763

£7,88 Unit Price incl. VAT

17

RETAINER-BEARING OUTER CAMS

5138629

£58,75 Unit Price incl. VAT

18

BEARING NDL M7X11X9 CLTSHHF

3512106

£24,48 Unit Price incl. VAT

19

PLUG-1/8 NPTF;HX/SOC W/SEALANT

7052702

£18,66 Unit Price incl. VAT

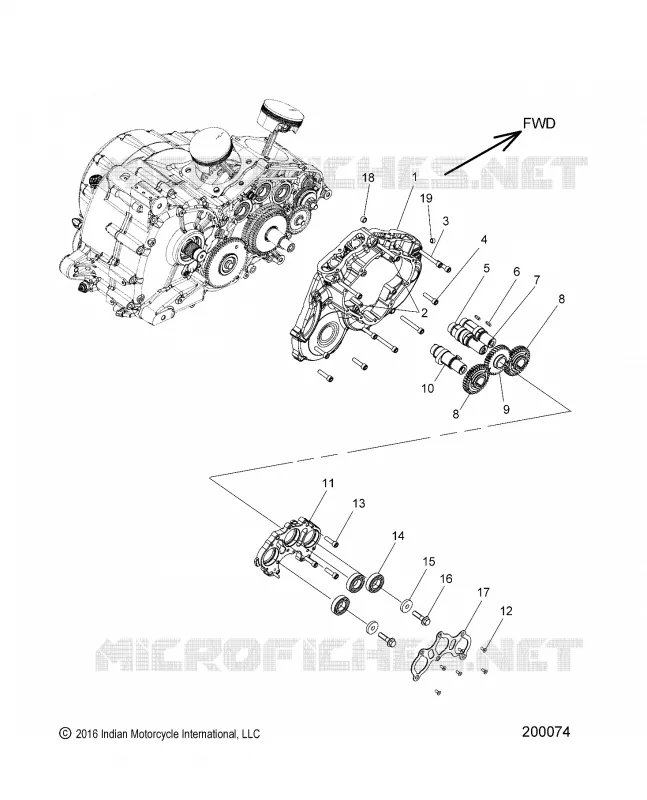

Find the detailed ENGINE, CAM SHAFTS AND GEARS INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
