CAM CHAIN AND SPROCKETS for INDIAN SCOUT SIXTY from 2021

CAM CHAIN AND SPROCKETS

1

SCR-HXFL M6X1.0X70 10.9

7520688

£12,72 Unit Price incl. VAT

2

GUIDE-CAM CHAIN;FIXED;COVER

3022742

£43,08 Unit Price incl. VAT

3

SPROCKET-CAM DRIVEN

3222227

£64,63 Unit Price incl. VAT

4

HEX FLANGE SCREW; 6 MM X 1.0 MM X 10 MM

7519164

£6,55 Unit Price incl. VAT

5

WATERPUMP DRIVEN GEAR ASSEMBLY

1333199

£52,22 Unit Price incl. VAT

6

SCREW

7517276

£10,14 Unit Price incl. VAT

7

CAM CHAIN TENSIONER HYDRO

3022741

3023997

£89,48 Unit Price incl. VAT

8

CAM CHAIN GUIDE TENSIONER FRONT

3022480

3023998

£64,63 Unit Price incl. VAT

9

SHOULDER BOLT; 6 MM X 12 MM X 15 MM

7519165

£16,64 Unit Price incl. VAT

10

CHAIN-CAM SILENT 6.35 PITCH

3222212

£105,00 Unit Price incl. VAT

11

FIXED CAMCHAIN GUIDE; FRONT

3022620

£50,27 Unit Price incl. VAT

12

TENSIONER CAM CHAIN GUIDE REAR

3022576

3023999

£144,43 Unit Price incl. VAT

13

FIXED CAMCHAIN GUIDE; REAR

3022577

£43,08 Unit Price incl. VAT

14

SOCKET HEAD SCREW; 6 MM X 30 MM

7517301

£3,92 Unit Price incl. VAT

15

GUIDE-CAM CHAIN;LOWER

3022691

£28,72 Unit Price incl. VAT

16

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

£2,62 Unit Price incl. VAT

17

HEX FLANGE SCREW; 10 X 1.5 X 40

7519763

£7,88 Unit Price incl. VAT

18

WSHR-34X10X4.76 HARD

7556871

£10,14 Unit Price incl. VAT

19

SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]

-------

Not Available

20

SPRING-SPLIT GEAR

7044476

9999999

Not Available

20

RING-RETAINING EXTERNAL 38MM

7710811

9999999

Not Available

20

ASM-GEAR CAM IDLER

1333533

1334617

£302,58 Unit Price incl. VAT

21

ASM. SHAFT CAM DRIVE

1205243

£150,71 Unit Price incl. VAT

21

KEY-RND END;4X4X16;DIN 6885A

7710623

£6,98 Unit Price incl. VAT

22

BEARING-BALL 20X42X12

3514801

£19,58 Unit Price incl. VAT

23

RING-RTNG INT 42X1.72

7670149

£10,14 Unit Price incl. VAT

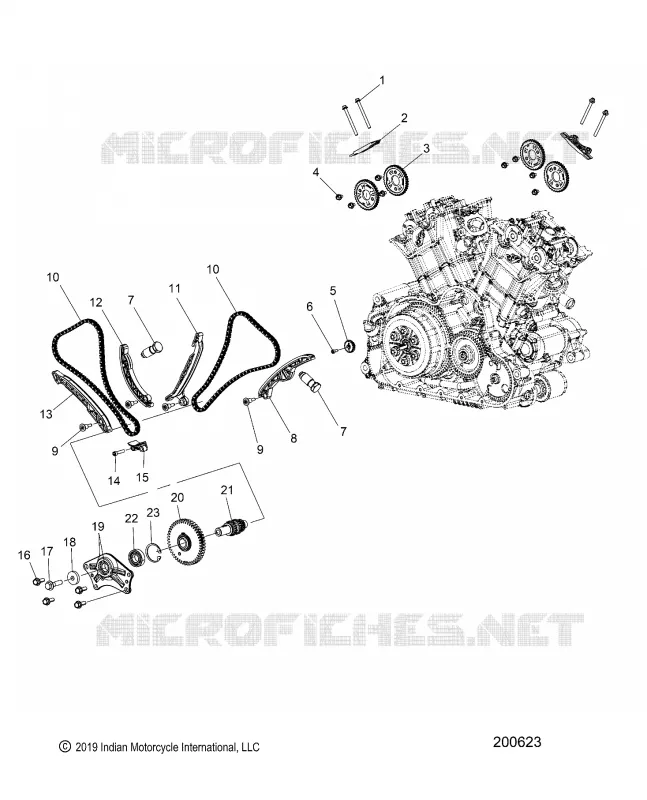

Find the detailed CAM CHAIN AND SPROCKETS INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
