FUEL SYSTEM, FUEL TANK ASM. for INDIAN SCOUT from 2016

FUEL SYSTEM, FUEL TANK ASM.

1

SOCKET HEAD SCREW; 5 MM X 25 MM

7518086

£7,88 Unit Price incl. VAT

2

ASM. IGN. /FUEL SLV [INCL. FUEL LOCK IGN. SWITCH]

4014434-385

£244,91 Unit Price incl. VAT

2

ASM. IGN/FUEL/FORK LOCK INTL SLV [INTL.][INCL. IGN. and FUEL LOCK]

4015158-385

4016936-385

£257,46 Unit Price incl. VAT

3

ASM. FUEL TANK INDIAN RED

1021889-639

1024443-639

£2 639,99 Unit Price incl. VAT

3

ASM. FUEL TANK WILDFIRE RED

1021889-676

1024443-676

Not Available

3

ASM. FUEL TANK SILVER SMOKE

1021889-581

1024443-581

£2 639,99 Unit Price incl. VAT

3

ASM. FUEL TANK BLACK

1021889-266

1024443-266

£2 651,94 Unit Price incl. VAT

3

ASM. FUEL TANK FLAT BLACK

1021889-463

1024443-463

£2 501,24 Unit Price incl. VAT

4

HOSE CLAMP

7080003

£2,44 Unit Price incl. VAT

5

VENT FUEL LINE

5450688

£71,81 Unit Price incl. VAT

6

LINE-WTR DRAIN

5450687

£50,27 Unit Price incl. VAT

7

LINE-WTR/VENT TO GND

5450689

£50,27 Unit Price incl. VAT

8

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

9

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

10

FUEL SEAL PFA

5414830

£44,06 Unit Price incl. VAT

11

ASM-FILTER FUEL SRVC

2521405

2521898

£89,48 Unit Price incl. VAT

11

SERVICE THERMISTOR

2521524

9999999

Not Available

11

PUMP-FUEL BTM MNT

2521564

2521733

£596,58 Unit Price incl. VAT

12

HEX HEAD BOLT; 5 MM X 0.8 MM X 16 MM

7519765

£2,62 Unit Price incl. VAT

13

LINE-TANK TNK TO RAIL

5415283

5417407

£98,44 Unit Price incl. VAT

14

ASM-ADAPTER VENT

2635426

£9,91 Unit Price incl. VAT

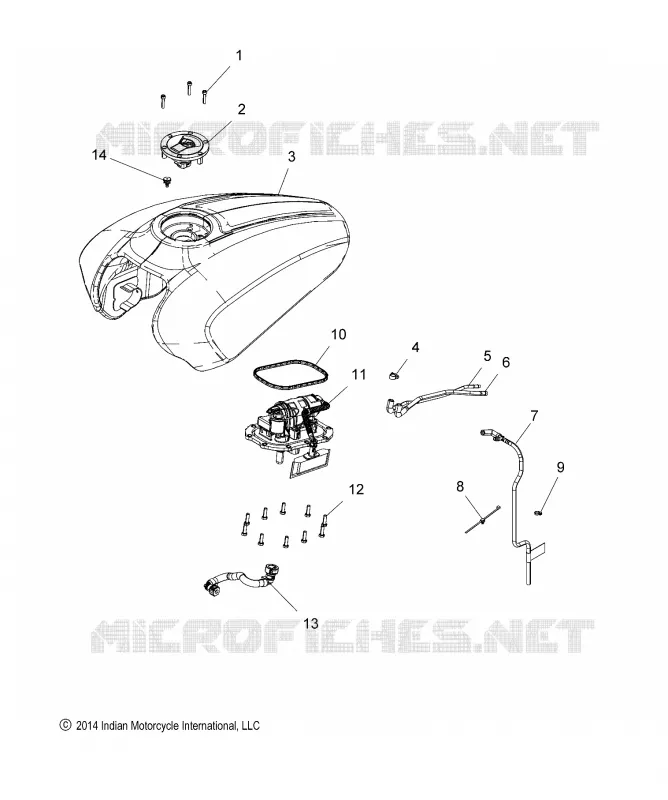

Find the detailed FUEL SYSTEM, FUEL TANK ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
