ENGINE, PISTON AND CRANKSHAFT for INDIAN SCOUT BOBBER SIXTY from 2020

ENGINE, PISTON AND CRANKSHAFT

1

K-RING STD 93MM

2206358

£111,56 Unit Price incl. VAT

2

PISTON ASSEMBLY; 93 MM

3022762

£213,50 Unit Price incl. VAT

3

C-CLIP; ROUNG(2)

7710479

£10,14 Unit Price incl. VAT

4

PISTON PIN; 22 MM X 12.8 MM X 56.6 MM

3022291

£58,75 Unit Price incl. VAT

5

ASM. CONNECTING ROD [INCL. 7]

3023055

£353,95 Unit Price incl. VAT

6

BEARING-ROD 48X51X17 LD GRD 1

3515027-001

£24,48 Unit Price incl. VAT

6

BEARING-ROD 48X51X17 LD GRD 2

3515027-002

£24,48 Unit Price incl. VAT

6

BEARING-MAIN 48X51X17 LD GRD 3

3515027-003

£24,48 Unit Price incl. VAT

7

CONNECTING ROD BOLT 9MM X 1.0MM X 44MM

7520356

£29,38 Unit Price incl. VAT

8

WOODRUFF KEY

7721122

£10,14 Unit Price incl. VAT

9

ASM-CRANKSHAFT

3023558

£1 499,17 Unit Price incl. VAT

10

CRANKSHAFT GEAR ASSEMBLY

1333532

1334616

£302,58 Unit Price incl. VAT

11

WASHER-FLAT ISO7415-M20 HARD

7556518

£12,72 Unit Price incl. VAT

12

HEX NUT; 20 MM X 1.5 MM

7547477

£19,58 Unit Price incl. VAT

13

ASM-BALANCE SHAFT

1205618

£276,30 Unit Price incl. VAT

14

WASHER-FLAT 13.5X38.5X2.7

7556771

£12,72 Unit Price incl. VAT

15

SCR-HEXHD M12X45 0600088

7518575

£29,38 Unit Price incl. VAT

16

BEARING-MAIN 56X60X23 UP GRD 2

3515065-002

9999999

Not Available

16

BEARING-MAIN 56X60X23 UP GRD 3

3515065-003

9999999

Not Available

16

BEARING-MAIN 56X60X23 UP GRD 1

3515065-001

9999999

Not Available

16

BEARING-MAIN 56X60X23 LW GRD 3

3515066-003

9999999

Not Available

16

BEARING-MAIN 56X60X23 LW GRD 1

3515066-001

9999999

Not Available

16

BEARING-MAIN 56X60X23 LW GRD 2

3515066-002

9999999

Not Available

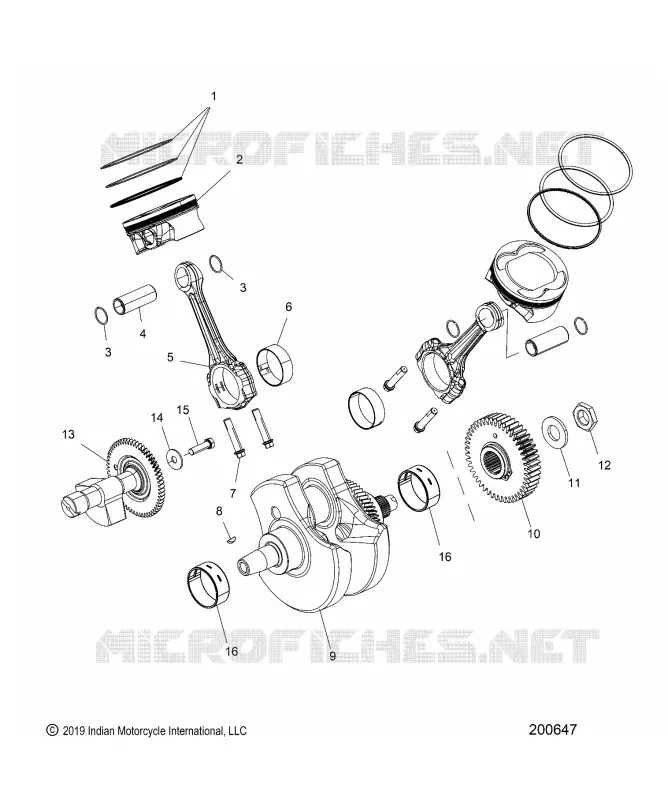

Find the detailed ENGINE, PISTON AND CRANKSHAFT INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
