CHASSIS, FRAME ASM. for INDIAN CHIEFTAIN / ROADMASTER from 2015

CHASSIS, FLOORBOARD, PASSENGER, ROADMASTER

DRIVE TRAIN, DRIVE SPROCKET, BELT AND GUARD

CHASSIS, FRAME ASM.

1

MAINFRAME FRONT TOURING BLK

5138127-626

5143586-626

£1 582,80 Unit Price incl. VAT

2

SCR-HXFL-M12X1.75X50 10.9 ZPB

7519845

£10,14 Unit Price incl. VAT

3

SCR-HXFL-M12X1.75X120

7519794

£29,38 Unit Price incl. VAT

4

SCR-M10X1.50X35 HX/FL-Y/D

7518334

£6,76 Unit Price incl. VAT

5

FRAME MID RH

5138129-329

5143588-329

£866,05 Unit Price incl. VAT

6

DOWL HOL M13X10

7663008

£6,76 Unit Price incl. VAT

7

WELD-SUBFRAME REAR

1019138

1024782

£979,54 Unit Price incl. VAT

8

HEX FLANGE SCREW; 8 MM X 20 MM

7517838

£6,55 Unit Price incl. VAT

9

FRAME REAR LOWER

1019383-329

1024636-329

£307,70 Unit Price incl. VAT

10

TUFLOK RIVET

7661855

£1,96 Unit Price incl. VAT

11

SHIELD-DEBRIS

5439852

9999999

Not Available

12

NUT-HXFL-M12X1.75 CL10 ZB

7547686

£6,76 Unit Price incl. VAT

13

FRAME MID LH

5138128-329

5143587-329

£907,86 Unit Price incl. VAT

14

SPACER-FRAME

5138436

£9,01 Unit Price incl. VAT

15

DOWEL-HOLLOW M12

7662129

£12,72 Unit Price incl. VAT

16

SCR-SHCS-M10X1.5X100

7519793

£29,38 Unit Price incl. VAT

17

ASM. TUBE FRAME LH BLACK

1018969-626

1026128-626

£351,66 Unit Price incl. VAT

18

SCR-SH-M10X1.5X25 8.8 ZPB

7519890

£6,76 Unit Price incl. VAT

19

SOCKET HEAD SCREW 10 MM X 1.5 MM X 60 MM

7519843

£10,14 Unit Price incl. VAT

20

SOCKET HEAD SCREW; 8 MM X 20 MM

7517410

£10,76 Unit Price incl. VAT

21

ENGINE MOUNT

5257184

£39,17 Unit Price incl. VAT

22

NUT-HEX-M10X1.5 8 ZB3 NYL

7547658

£2,62 Unit Price incl. VAT

23

ASM. TUBE FRAME RH BLACK

1018970-626

£351,66 Unit Price incl. VAT

24

ANTENNA BRACKET

5258057

£12,72 Unit Price incl. VAT

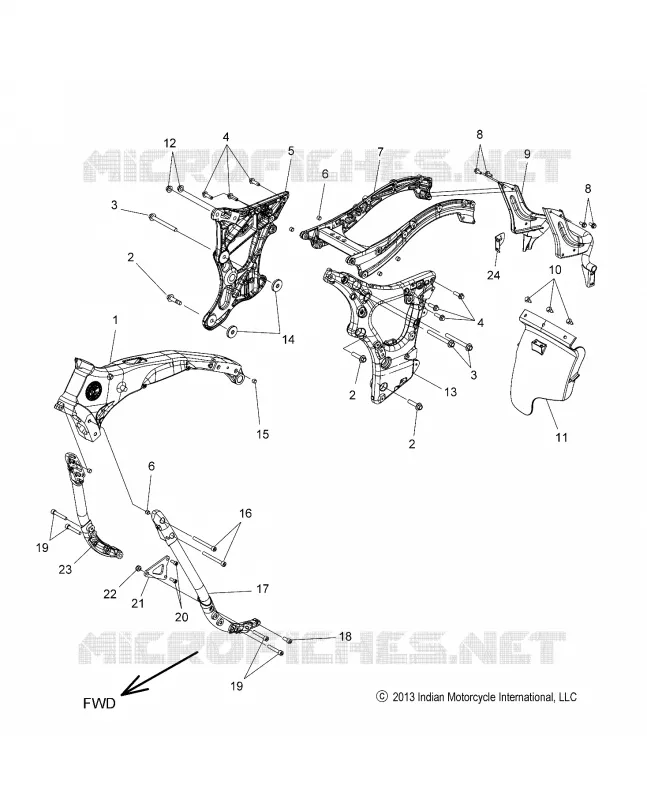

Find the detailed CHASSIS, FRAME ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
