SADDLEBAG ASM. for INDIAN CHIEFTAIN CLASSIC from 2018

SADDLEBAG ASM.

1

BEZEL LOCK SADDLEBAG CHROME

5450924-156

£78,74 Unit Price incl. VAT

2

LID SADDLEBAG RH

5450214-601

9999999

Not Available

2

LID SADDLEBAG LH

5450213-639

9999999

Not Available

2

LID SADDLEBAG RH

5450214-639

£800,35 Unit Price incl. VAT

2

LID SADDLEBAG RH

5450214-266

£800,35 Unit Price incl. VAT

2

LID SADDLEBAG LH

5450213-601

9999999

Not Available

2

LID SADDLEBAG LH

5450213-266

£860,08 Unit Price incl. VAT

3

SCR-FLANGE HD M5X12 06000086

7518338

£6,76 Unit Price incl. VAT

4

ASM. HINGE SADDLEBAG REAR CHROME [FRONT ON RH SIDE REAR ON LH SIDE]

2634925-156

£137,00 Unit Price incl. VAT

4

ASM. HINGE SADDLEBAG FRONT CHROME [FRONT ON LH SIDE REAR ON RH SIDE]

2634898-156

£137,00 Unit Price incl. VAT

5

SADDLEBAG LOCK SEAL

5414686

£3,28 Unit Price incl. VAT

6

TOUR LOCK KIT ASSEMBLY

2635146

£251,18 Unit Price incl. VAT

7

LOCK ELECTRONIC SADDLEBAG

4016854

4017838

£357,95 Unit Price incl. VAT

8

SOCKET HEAD SCREW; 6 MM X 20 MM

7517305

£6,76 Unit Price incl. VAT

9

HOOP BRACKET ASSEMBLY

1016590

1026382

£34,27 Unit Price incl. VAT

10

HOOP-LATCH STRIKER RH

5338191

£34,27 Unit Price incl. VAT

10

HOOP-LATCH STRIKER LH

5338190

£34,27 Unit Price incl. VAT

11

SOCKET HEAD SCREW; 4 MM X .7 MM

7518812

£6,55 Unit Price incl. VAT

12

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

£2,44 Unit Price incl. VAT

13

BRKT. HINGE RH FLAT BLACK

5138475-463

£49,21 Unit Price incl. VAT

13

BRKT. HINGE LH FLAT BLACK

5138474-463

£49,21 Unit Price incl. VAT

14

TRIM SADDLEBAG; REAR

5452911

9999999

Not Available

15

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

16

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

17

BACKUP SADDLEBAG PLATE

5257409

£13,22 Unit Price incl. VAT

18

BRKT-MNT SDLBAG

5257139

5511003-329

£49,21 Unit Price incl. VAT

19

SADDLEBAG MOUNT PAD

5414642

£34,27 Unit Price incl. VAT

20

ASM. BIN SADDLEBAG LH

5451493-266

9999999

Not Available

20

ASM. BIN SADDLEBAG RH

5451494-639

9999999

Not Available

20

ASM. BIN SADDLEBAG RH

5451494-601

5456386-601

£1 409,58 Unit Price incl. VAT

20

ASM. BIN SADDLEBAG LH

5451493-601

5456385-601

Not Available

20

ASM. BIN SADDLEBAG LH

5451493-639

5456385-639

£1 337,90 Unit Price incl. VAT

20

ASM. BIN SADDLEBAG RH

5451494-266

5456386-266

£1 200,53 Unit Price incl. VAT

21

SADDLEBAG TRIM; FRONT

5452912

9999999

Not Available

22

DOWEL PIN; 5/32 IN X 7/8 IN

7661970

£2,62 Unit Price incl. VAT

23

SADDLEBAG LATCH CAM

5450622

9999999

Not Available

24

WASHER 3 MM X 35 MM RUBBER

5414770

£2,62 Unit Price incl. VAT

25

SADDLEBAG LATCH SPACER

5139225

£14,69 Unit Price incl. VAT

26

SADDLEBAG ANCHOR BUSHING

5414757

£5,24 Unit Price incl. VAT

27

ANCHOR PIN

7662154

£16,64 Unit Price incl. VAT

28

SCR-SH M8X1.25X25 10.9 ZPB

7520170

£3,92 Unit Price incl. VAT

29

TOURING SPOOL

5139710

9999999

Not Available

30

SADDLEBAG SEAL

5415263

5416881

£62,64 Unit Price incl. VAT

31

WIRE COVER

5522014

£50,27 Unit Price incl. VAT

32

SADDLEBAG HARNESS CLIP; RIGHT

5452010

£10,14 Unit Price incl. VAT

32

CLIP-SADDLEBAG HARNESS;LH

5452006

£10,14 Unit Price incl. VAT

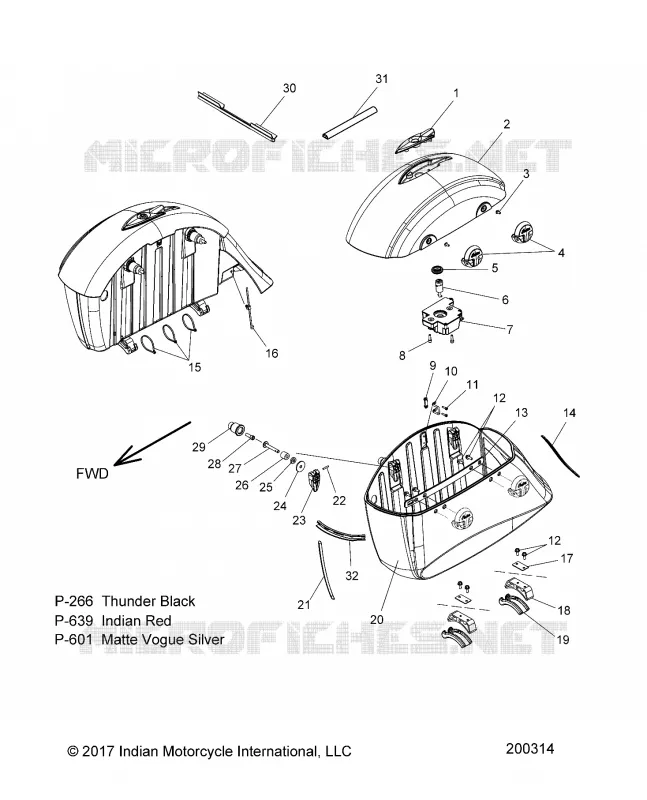

Find the detailed SADDLEBAG ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
