DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE for INDIAN CHIEFTAIN CLASSIC from 2018

DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE

1

CLUTCH BASKET ASSEMBLY; OUTER

1333061

£961,62 Unit Price incl. VAT

2

CLUTCH-THRUST WASHER

7556747

£44,06 Unit Price incl. VAT

3

INNER CLUTCH HUB

5138090

£270,02 Unit Price incl. VAT

4

JUDDER SPRING SEAT

5256848

9999999

Not Available

5

SPRING-JUDDER CLUTCH

7043878

£72,18 Unit Price incl. VAT

6

CLUTCH PACK KIT

2205282

£452,15 Unit Price incl. VAT

7

PLATE-PRESSURE CLUTCH

5138284

£156,98 Unit Price incl. VAT

8

CLUTCH SPRING

7043929

£78,74 Unit Price incl. VAT

9

SCR-HHSEMS-M6X1.0X45 8.8 ZPC

7519767

£6,76 Unit Price incl. VAT

10

COLLAR-BEARING CLUTCH

5138283

£150,71 Unit Price incl. VAT

11

BRNG-NEEDLE 40X45X17

3514791

£111,56 Unit Price incl. VAT

12

CLUTCH ASSEMBLY

1333060

£1 564,88 Unit Price incl. VAT

13

WASHER-FLAT ISO7415-M20 HARD

7556518

£12,72 Unit Price incl. VAT

14

SPRING-DISC 2093A 40X20.4X2.5

7556519

£50,27 Unit Price incl. VAT

15

HEX NUT; 20 MM X 1.5 MM

7547477

£19,58 Unit Price incl. VAT

16

LIFT RACK CLUTCH

6230980

£72,18 Unit Price incl. VAT

17

BALL BEARING 12 X 32 X 10

3514683

9999999

Not Available

18

CLUTCH LIFTER PLATE

5137169

9999999

Not Available

19

INTERNAL RETAINING RING; 1.875 IN

7710651

£2,62 Unit Price incl. VAT

20

PRIMARY DRIVE GEAR

6230978

£302,58 Unit Price incl. VAT

21

COLD TEST ADAPTER; SPLINED

6230976

£131,24 Unit Price incl. VAT

22

PLATE-LOCK CRANK/COMP

5262886

£13,22 Unit Price incl. VAT

23

HEX FLANGE HD SCREW; 6 MM X 12 MM

7517257

£11,75 Unit Price incl. VAT

24

SCR-HXHD-M12X80 10.9 P&O P80

7519819

£39,17 Unit Price incl. VAT

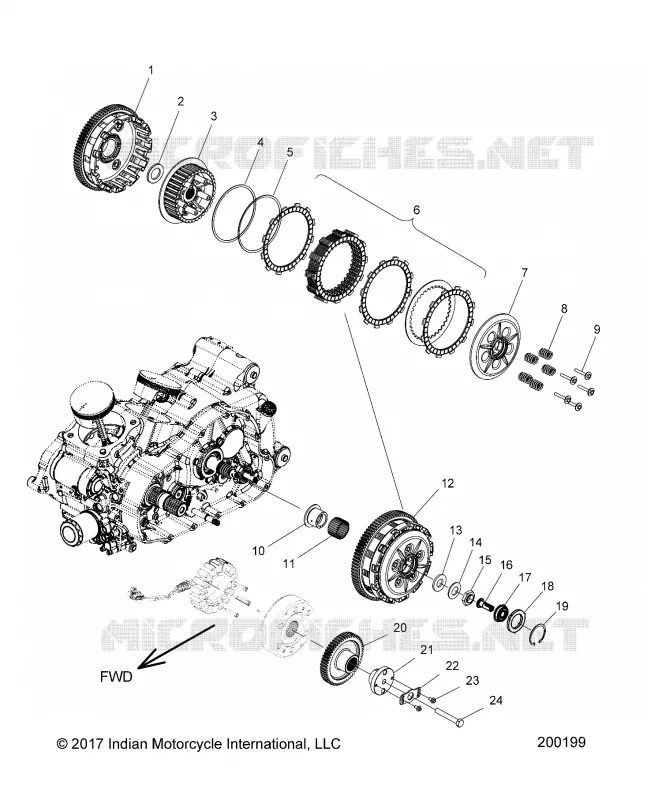

Find the detailed DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
