FAIRING ASM, WINDSHIELD MOUNT for INDIAN ROADMASTER / ELITE from 2018

FAIRING ASM, WINDSHIELD MOUNT

1

BOLT 6 MM X 1.0 MM 7 MM 9 M

7518788

£10,14 Unit Price incl. VAT

2

WSHR-FL 11X18X1.59MM

5813188

9999999

Not Available

3

KIT WINDSHIELD TOURING

2881796

£464,70 Unit Price incl. VAT

4

T-NUT 6 MM

7547300

£2,62 Unit Price incl. VAT

5

SUPPORT WINDSHIELD

5138467-626

5145514-626

Not Available

6

NUT-HXFL-M8X1.25 8 ZB3 NYL

7547454

7548028

£3,92 Unit Price incl. VAT

7

FLANGE BOLT 8 MM X 10 MM X 7

3514565

£9,01 Unit Price incl. VAT

8

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

£2,44 Unit Price incl. VAT

9

SCR-SOCHD M8X50 0600084

7518013

£9,01 Unit Price incl. VAT

10

WASHER

7556064

£6,76 Unit Price incl. VAT

11

SOCKET HEAD SCREW; 6 MM X 20 MM

7517305

£6,76 Unit Price incl. VAT

12

BUSHING FLANGE

5140871

£11,75 Unit Price incl. VAT

13

THRUST WASHER; 10 X 18 X 1.0

7556832

£10,14 Unit Price incl. VAT

14

FLANGE BEARING; 10 X 12 X 4.0

3514853

£9,01 Unit Price incl. VAT

15

LINK WINDSHIELD JT BLK

5138909-626

5639267-626

£72,18 Unit Price incl. VAT

16

SCREW

7517610

£2,62 Unit Price incl. VAT

17

WINDSHIELD SPRING; LEFT

7043355

£11,57 Unit Price incl. VAT

17

WINDSHIELD SPRING; RIGHT

7043356

£10,14 Unit Price incl. VAT

18

O-RING

5411356

£3,92 Unit Price incl. VAT

19

WASHER

7556113

£6,76 Unit Price incl. VAT

20

SPHERICAL BEARING; 12 MM

3514566

£19,58 Unit Price incl. VAT

21

ASM. FAIRING BRACKET GPS

1022608-329

9999999

Not Available

22

PIVOT ROD

5138358

£57,44 Unit Price incl. VAT

23

WASHER-FL 6.0X0.8(10)

7556121

£1,96 Unit Price incl. VAT

24

WASHER

7556064

£6,76 Unit Price incl. VAT

25

STUD-EXH MNT M8X1.25X22 ZC

5137389

£12,72 Unit Price incl. VAT

26

BSHG-FLG 8.5X12.7X18.5

5136907

£11,75 Unit Price incl. VAT

27

ISOLATOR-FAIRING

5416052

£6,55 Unit Price incl. VAT

28

WSHR-FLAT M10X30X2 ZPC

7556260

£12,72 Unit Price incl. VAT

29

NYLOK NUT; 8 MM X 1.25 MM

7547144

£5,24 Unit Price incl. VAT

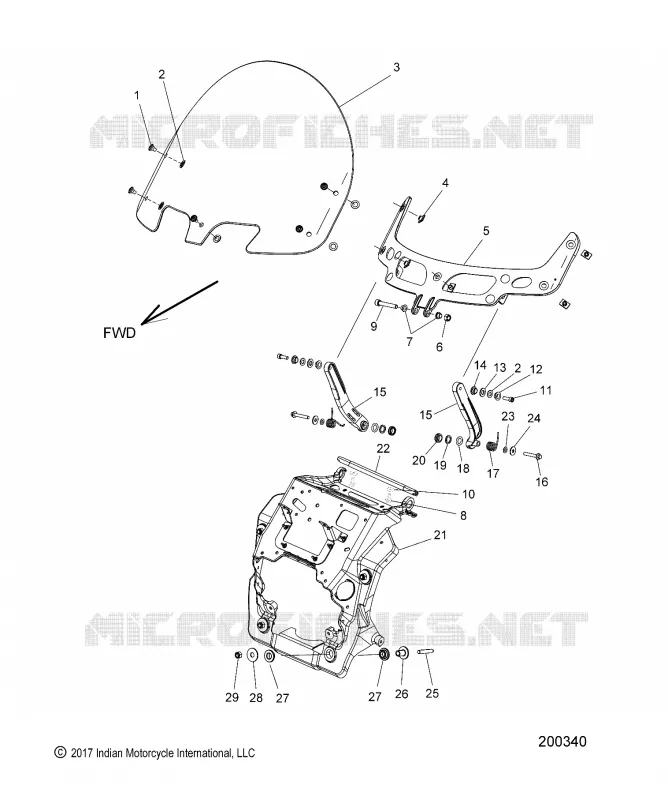

Find the detailed FAIRING ASM, WINDSHIELD MOUNT INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
