FUEL SYSTEM, FUEL CLAM SHELL/THROTTLE BODY for INDIAN CHIEFTAIN ELITE from 2020

ENGINE, CYLINDER HEAD ASM.

REAR SUSPENSION ASM., SWING ARM AND SHOCK

FUEL SYSTEM, FUEL CLAM SHELL/THROTTLE BODY

1

FUEL LINE; HWI

5416352

£138,14 Unit Price incl. VAT

2

SCR-SOCFLGHD M6X1.0X16

7518803

£6,55 Unit Price incl. VAT

3

CLAMSHELL ASSEMBLY; FUEL

2521767

£138,14 Unit Price incl. VAT

4

O-RING-BOSCH EV-14 UPPER

1500198

£14,69 Unit Price incl. VAT

4

BOSCH O-RING

5412891

£2,35 Unit Price incl. VAT

4

FUEL INJECTOR

2521332

£357,95 Unit Price incl. VAT

5

INTAKE MANIFOLD

5141999

5144051

£307,70 Unit Price incl. VAT

6

CLAMP-NARROW BAND;1.73/2.48

7082021

£7,88 Unit Price incl. VAT

7

INTAKE MANIFOLD ADAPTER

1204709

£43,08 Unit Price incl. VAT

8

INTAKE MANIFOLD SUPPORT BRACKET

5259785

5271378

£48,96 Unit Price incl. VAT

9

SCREW SOCHD M6X65

7517682

£10,14 Unit Price incl. VAT

10

BRKT-STAY ELEC HRNS

5910682

£29,38 Unit Price incl. VAT

11

THROTTLE BODY ASSEMBLY

1204685

£645,06 Unit Price incl. VAT

12

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

£2,44 Unit Price incl. VAT

13

WASHER

7556064

£6,76 Unit Price incl. VAT

14

ISOLATOR-INT MTG BRKT

5414603

£6,76 Unit Price incl. VAT

15

SCR-SH-M8X1.25X12 8.8 ZPB

7521050

£5,24 Unit Price incl. VAT

16

PLUG-HEX SOCKET;1/4X18;SEALANT

7518835

£6,76 Unit Price incl. VAT

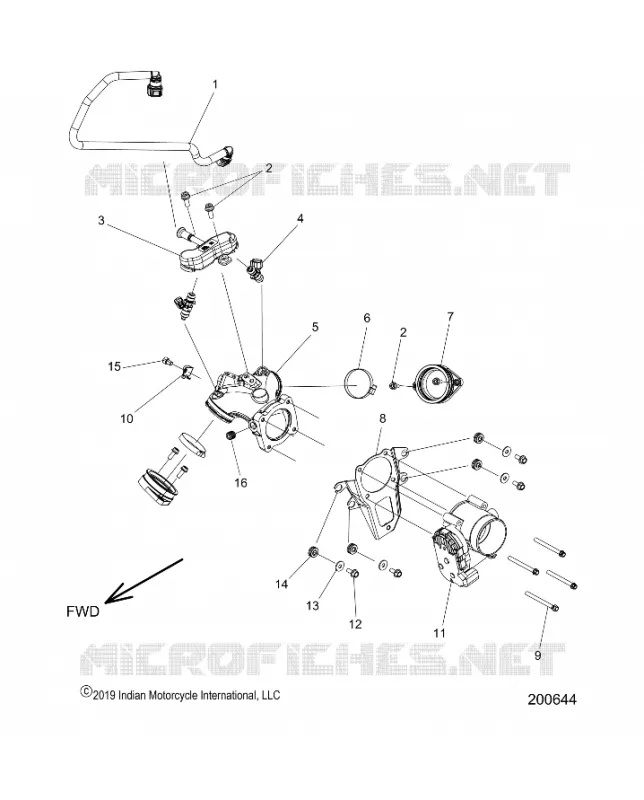

Find the detailed FUEL SYSTEM, FUEL CLAM SHELL/THROTTLE BODY INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
