ELECTRICAL, COMPONENTS 1 for INDIAN CHIEFTAIN ELITE from 2020

ELECTRICAL, COMPONENTS 1

1

POWER SWITCH; BLACK; 38 MM

4016998

£71,59 Unit Price incl. VAT

2

K-FOB HOUSING; INDIAN;2BTN

2206559

2890127

£43,08 Unit Price incl. VAT

2

LOGO DECAL; INDIAN

7180111

£16,54 Unit Price incl. VAT

2

2 BUTTON REMOTE CONTROL FOB INDIAN

4014121

4081321

£244,91 Unit Price incl. VAT

2

BATTERY KEY FOB

4014675

4081311

£14,88 Unit Price incl. VAT

3

BRKT-HORN MOUNT

5264799

£29,38 Unit Price incl. VAT

4

HORN-DISK LOWTONE TVX 50FK

4017857

£111,56 Unit Price incl. VAT

4

SCREW M8X16 SOCHD

7517569

£6,76 Unit Price incl. VAT

5

DECAL-VCM NOTICE

7186751

£9,91 Unit Price incl. VAT

5

ASM-VCM PROGRAMMED IND 7X

2415009

£872,03 Unit Price incl. VAT

6

SOCKET HEAD SCREW; 6 MM X 12 MM

7517781

£5,24 Unit Price incl. VAT

7

GEAR POSITION SENSOR

4018619

4019454

£131,87 Unit Price incl. VAT

8

O-RING 26.65 IN X 2.62

5412530

£2,62 Unit Price incl. VAT

9

SCR-SH-M6X1.0X16 8.8 ZPY D204

7519303

£6,55 Unit Price incl. VAT

10

REGULATOR-VOLT HARNESSCNT BLK

4017919

4019661

£458,42 Unit Price incl. VAT

11

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

£10,14 Unit Price incl. VAT

12

VOLTAGE REGULATOR MOUNT BRACKET

5257637

£98,47 Unit Price incl. VAT

13

NO START ELECTRIC CONTROL MODULE (ECM)

4014125

£806,33 Unit Price incl. VAT

14

SCR-SOCHD-M4X.7X8 ZB

7519851

£5,24 Unit Price incl. VAT

15

WHEEL SPEED SENSOR; REAR

4014216

4081070

£282,59 Unit Price incl. VAT

16

ABS SENSOR SHIM; 0.5 MM

5255106

£9,61 Unit Price incl. VAT

17

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

£10,14 Unit Price incl. VAT

18

CLAMP-REAR BRAKE

7080983

£6,55 Unit Price incl. VAT

19

SCREW

7517704

£10,14 Unit Price incl. VAT

20

WHEEL SPEED SENSOR

4013251

4081069

£282,59 Unit Price incl. VAT

21

ABS SPEED SENSOR MOUNT; 16 MM

5632575

£39,17 Unit Price incl. VAT

22

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

23

SADDLEBAG LOCK SWITCH

4017110

£98,47 Unit Price incl. VAT

24

SCR-FLHD-M5X.8X8.8 ZNC

7519876

£6,55 Unit Price incl. VAT

25

12V OUTLET

4012393

£50,27 Unit Price incl. VAT

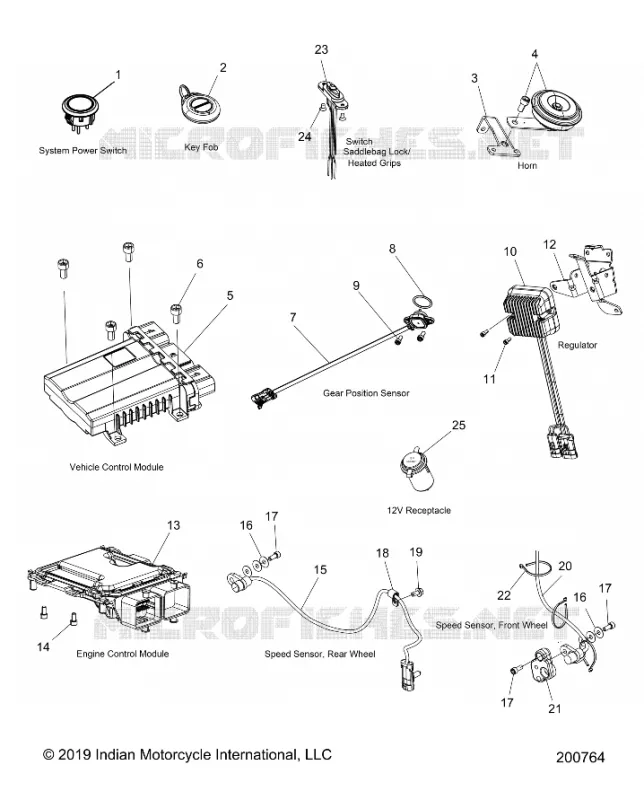

Find the detailed ELECTRICAL, COMPONENTS 1 INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
