FAIRING ASM, WINDSHIELD MOUNT for INDIAN CHIEFTAIN DARK HORSE from 2018

FAIRING ASM, WINDSHIELD MOUNT

1

SHOULDER BOLT; M6 X 1.0 X 7

7520510

£11,27 Unit Price incl. VAT

1

BOLT 6 MM X 1.0 MM 7 MM 9 M

7518788

£10,14 Unit Price incl. VAT

2

WSHR-FL 11X18X1.59MM

5813188

9999999

Not Available

3

K-WINDSHIELD SHORT TOUR TNTD

2881797-02

9999999

Not Available

4

T-NUT 6 MM

7547300

£2,62 Unit Price incl. VAT

5

SUPPORT WINDSHIELD

5138467-626

5145514-626

Not Available

6

NUT-HXFL-M8X1.25 8 ZB3 NYL

7547454

7548028

£3,92 Unit Price incl. VAT

7

FLANGE BOLT 8 MM X 10 MM X 7

3514565

£9,01 Unit Price incl. VAT

8

WASHER

7556064

£6,76 Unit Price incl. VAT

9

SCR-SOCHD M8X50 0600084

7518013

£9,01 Unit Price incl. VAT

10

PIVOT ROD

5138358

£57,44 Unit Price incl. VAT

11

SOCKET HEAD SCREW; 6 MM X 20 MM

7517305

£6,76 Unit Price incl. VAT

12

BUSHING FLANGE

5140871

£11,75 Unit Price incl. VAT

13

THRUST WASHER; 10 X 18 X 1.0

7556832

£10,14 Unit Price incl. VAT

14

FLANGE BEARING; 10 X 12 X 4.0

3514853

£9,01 Unit Price incl. VAT

15

LINK WINDSHIELD JT BLK

5138909-626

5639267-626

£72,18 Unit Price incl. VAT

16

SCREW

7517610

£2,62 Unit Price incl. VAT

17

WINDSHIELD SPRING; LEFT

7043355

£11,57 Unit Price incl. VAT

17

WINDSHIELD SPRING; RIGHT

7043356

£10,14 Unit Price incl. VAT

18

O-RING

5411356

£3,92 Unit Price incl. VAT

19

WASHER

7556113

£6,76 Unit Price incl. VAT

20

SPHERICAL BEARING; 12 MM

3514566

£19,58 Unit Price incl. VAT

21

ASM. FAIRING BRACKET

1020734-329

9999999

Not Available

22

GROMMET-ELEC CAB SLIT

5415049

£6,55 Unit Price incl. VAT

23

U-CLIP SPEED NUT

7081305

£3,28 Unit Price incl. VAT

24

STUD-EXH MNT M8X1.25X22 ZC

5137389

£12,72 Unit Price incl. VAT

25

BSHG-FLG 8.5X12.7X18.5

5136907

£11,75 Unit Price incl. VAT

26

BSHG-FLT RBR

5413596

£3,92 Unit Price incl. VAT

27

WSHR-FLAT M10X30X2 ZPC

7556260

£12,72 Unit Price incl. VAT

28

ROUTING CLIP

7081496

£6,76 Unit Price incl. VAT

29

NYLOK NUT; 8 MM X 1.25 MM

7547144

£5,24 Unit Price incl. VAT

30

WASHER-FL 6.0X0.8(10)

7556121

£1,96 Unit Price incl. VAT

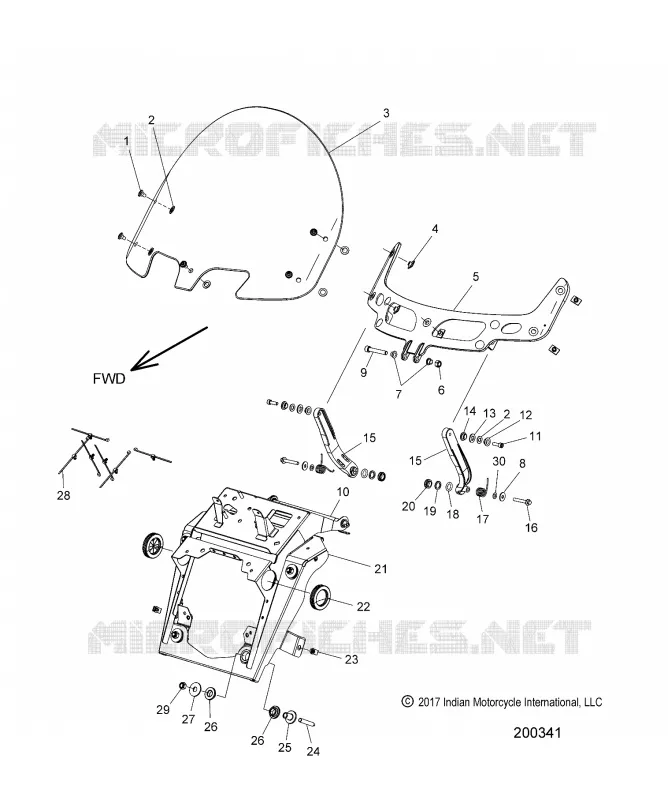

Find the detailed FAIRING ASM, WINDSHIELD MOUNT INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
