1
Engine displacement
1800
2
Year
2018
3
Trim
CHIEFTAIN DARK HORSE
4
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.
by
ELECTRICAL, TURN SIGNAL, REAR AND TAILLIGHT
FUEL SYSTEM, FUEL TANK ASM.
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
-
K-SVC GPHX TANK SLVR HEADDRESS
2206123
9999999
Not Available
1
CONSOLE-OUTER NO GAUGE AL THUNDER BLACK
5633653-266
£609,22 Unit Price incl. VAT
2
CONSOLE-INNER BLK CHROME
5262804-03
£144,43 Unit Price incl. VAT
3
CONSOLE EDGE TRIM; 450 MM
8360133
£57,44 Unit Price incl. VAT
4
PLASTIC DART CLIP; NYLON
7670088
£2,62 Unit Price incl. VAT
5
STRAP FUEL TANK LEATHER BLACK
2685660-01
9999999
Not Available
6
SCR-FLHD-M5X.8X8.8 ZNC
7519876
£6,55 Unit Price incl. VAT
7
NYLOK NUT
7546601
£1,96 Unit Price incl. VAT
8
FUEL ACCESS ASSEMBLY
2521374
£357,95 Unit Price incl. VAT
9
FUEL SEAL; MOLDED
5414514
£49,21 Unit Price incl. VAT
10
CAP FUEL DUMMY BLK
5138538-266
£105,00 Unit Price incl. VAT
11
TANK FUEL
1021997-1422
1025508-1422
£3 350,76 Unit Price incl. VAT
12
LINE-FUEL VENT TO GROUND UPR
5439857
£111,56 Unit Price incl. VAT
13
LINE-FUEL VENT TO GROUND LWR
5439858
£207,23 Unit Price incl. VAT
14
CLAMP CABLE
7080499
£7,88 Unit Price incl. VAT
15
XMAS TREE CLIP; .70 X .187 DIA
7661953
£1,96 Unit Price incl. VAT
16
FUEL LINE
5414515
£138,14 Unit Price incl. VAT
17
CAP FUEL BLK
5138508-266
£131,87 Unit Price incl. VAT
18
ASM-PUMP SENDER-FUEL SVCBLFLTR
2521787
2522160
£590,30 Unit Price incl. VAT
18
FUEL FILTER KIT; INDIAN
2207067
£65,29 Unit Price incl. VAT
19
PLUG-CONSOLE TALL
5453426
£16,54 Unit Price incl. VAT
19
PISTON
*******
Not Available
20
SCR-BTNHD M6X12 0600095
7519000
£3,92 Unit Price incl. VAT
21
SHOULDER SCREW; 6 MM X 11.75 MM X 14 MM
7519350
£16,64 Unit Price incl. VAT
22
GROMMET; .38 IN X .75 IN X .5 IN
5412201
£9,01 Unit Price incl. VAT

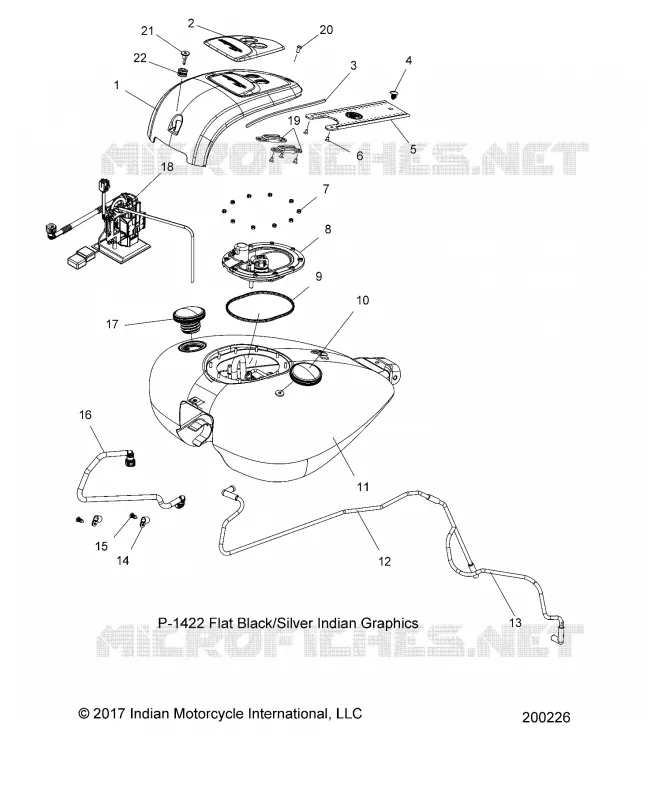

Find the detailed FUEL SYSTEM, FUEL TANK ASM. INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
