ELECTRICAL, HEADLIGHT for INDIAN CHIEFTAIN CLASSIC from 2018

ELECTRICAL, HEADLIGHT

1

SCR-#8-18X.50 PH/PN HI/LO B

7517910

£7,88 Unit Price incl. VAT

2

RING-RET BULB

5244923

£48,96 Unit Price incl. VAT

3

DUAL HALOGEN HOUSING ASSEMBLY

2412821

£150,71 Unit Price incl. VAT

3

ASM-DUAL HALAGON;POSITION;ECE

2413826

£163,27 Unit Price incl. VAT

3

HEADLIGHT KIT; BULB; RETAINER

2205568

£72,18 Unit Price incl. VAT

4

SCR-HEADLIGHT ADJ

7519875

£10,14 Unit Price incl. VAT

5

HEADLIGHT BRACKET

5256479

£49,21 Unit Price incl. VAT

6

SPRING-COMP HEADLIGHT

7041958

£9,91 Unit Price incl. VAT

7

HEADLIGHT CARRIER INDIAN

5453427

5456816

£85,31 Unit Price incl. VAT

8

SCREW

7517610

£2,62 Unit Price incl. VAT

9

WASHER

7556064

£6,76 Unit Price incl. VAT

10

ISOLATOR-HEADLIGHT

5414736

£6,76 Unit Price incl. VAT

11

HEADLIGHT FLANGE BUSHING; INDIAN

5138662

£9,01 Unit Price incl. VAT

12

WASHER PIN HEAD SCREW; 10-16

7518641

£5,24 Unit Price incl. VAT

13

GROMMET; .38 IN X .75 IN X .5 IN

5412201

£9,01 Unit Price incl. VAT

14

HEADLIGHT BOOT

2412986

£53,69 Unit Price incl. VAT

15

SCR-RETAINER HDLIGHT

7520109

9999999

Not Available

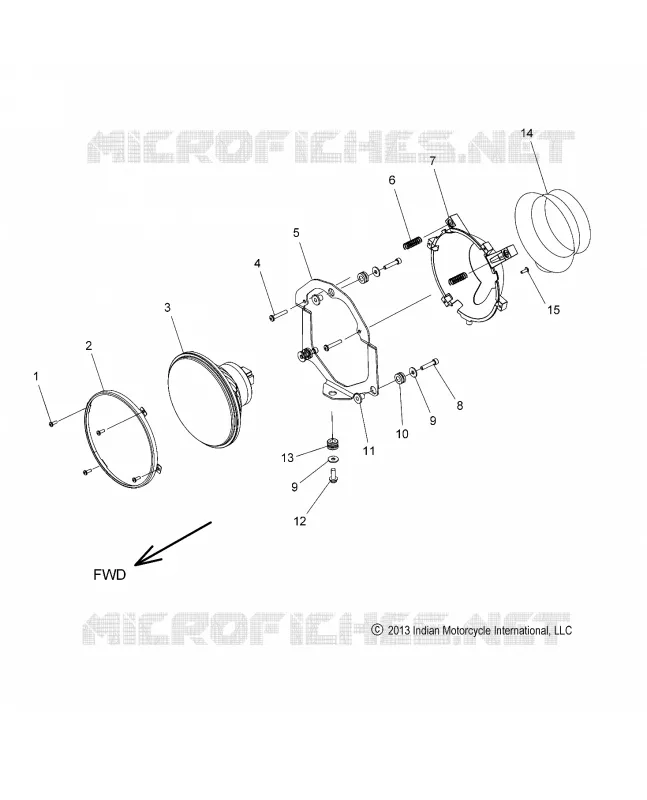

Find the detailed ELECTRICAL, HEADLIGHT INDIAN diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original INDIAN part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
